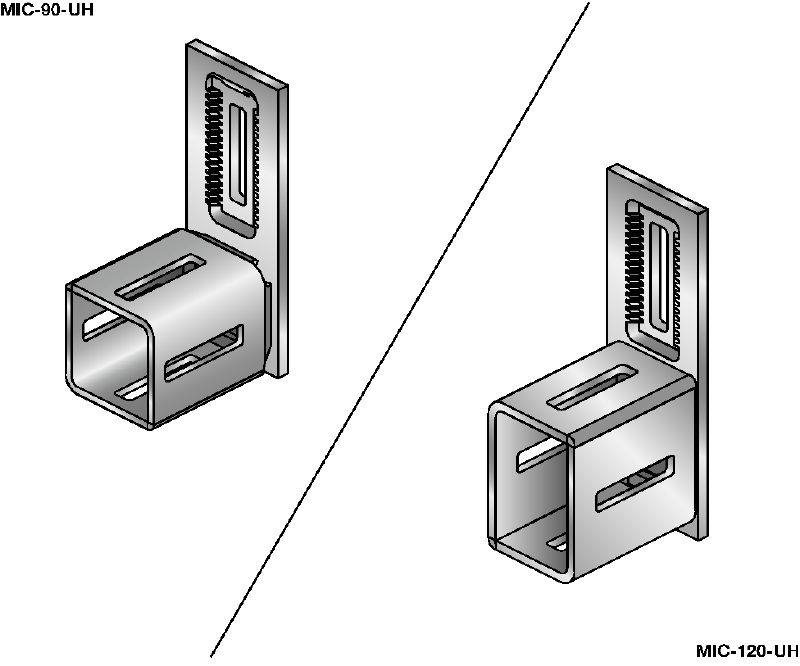

MIC-UH Connector
Standard hot-dip galvanised (HDG) connector for fastening MI girders to one another
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Bolt, Nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Choose options
Modular Girder Type
- 90
- 120
Pack size
- 4 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 43.160
Technical Data
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector 55 µm - DIN EN ISO 1461; Backing plate, Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- 50 mm (2") initial vertical adjustability for rapid assembly
- 5 mm (0.2") fine vertical adjustability for increased flexibility
- 25 mm (1") horizontal adjustability possible thanks to the slot in the connector
- Connector comes with self-locking nuts to help protect against vibration
- Designed for fast, one-person installation
Applications

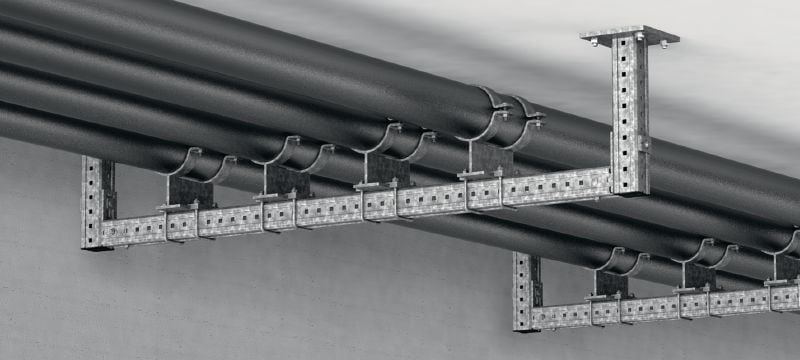

- Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
- Installing MI girders between two walls
- Highly flexible connector for multi-purpose applications
- High shear load capacity for non-cantilever structures
- Recommended for use in moderately corrosive outdoor and indoor environments
For approval or certificate information, please see individual items.
