MIC-L Connector

Connector MIC-90-L #304805

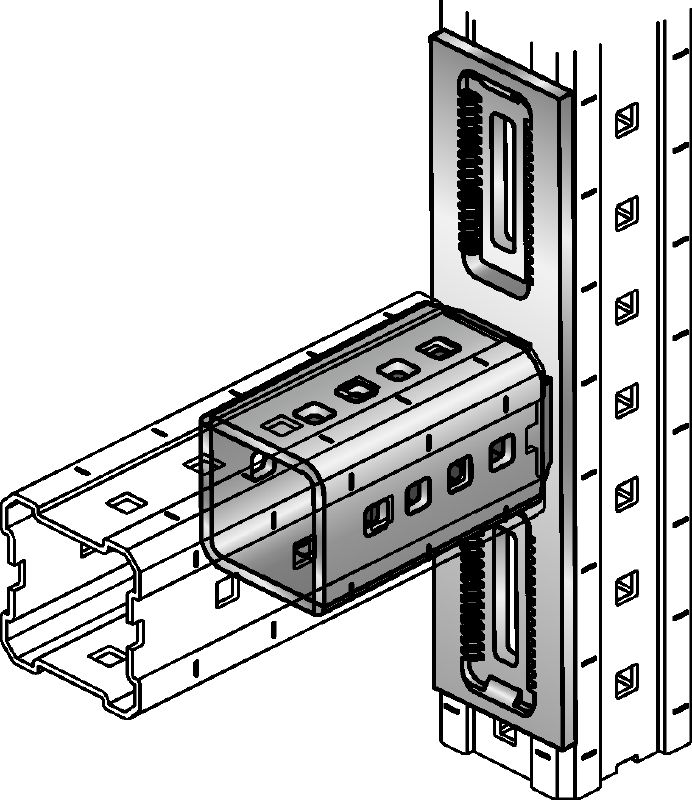

Hot-dip galvanised (HDG) connector for fastening MI girders perpendicularly to one another

Weight: 4.05 kg
Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth plate: S235 - EN10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461

Customers also searched for 3d channel systems, connecting girders, cantilever connections, connectors or metal connectors.

Choose options

Modular Girder Type

Pack size

2 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 66.175

OMR 66.170 / 1 each

Technical Data

Weight

4.05 kg

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth plate: S235 - EN10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Set

Yes

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

Provides a strong and rigid connection
Adjustable by up to 50 mm during installation
Can be finely adjusted by up to 5 mm
Connector comes with self-locking nuts to help protect against vibration
No welding required – for faster, more efficient installation

Applications

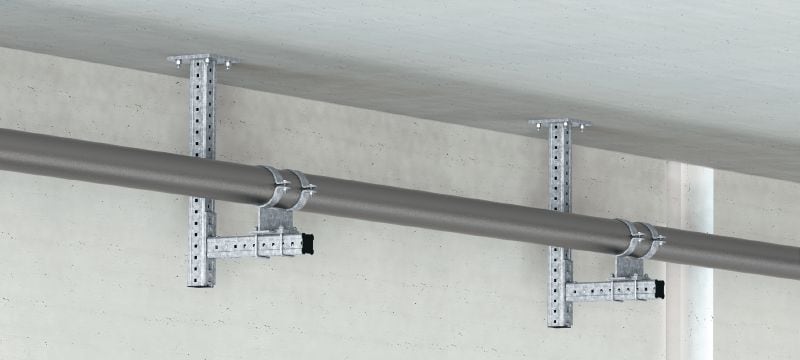

Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
Provides flexible solutions for industrial and heavy commercial applications, eliminating the need for welding
Cantilever connections
