MIC-UB Connector

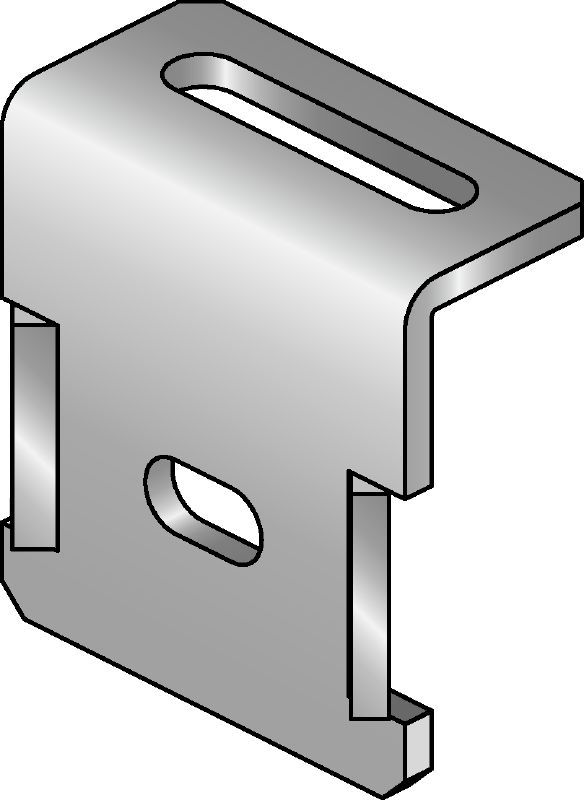

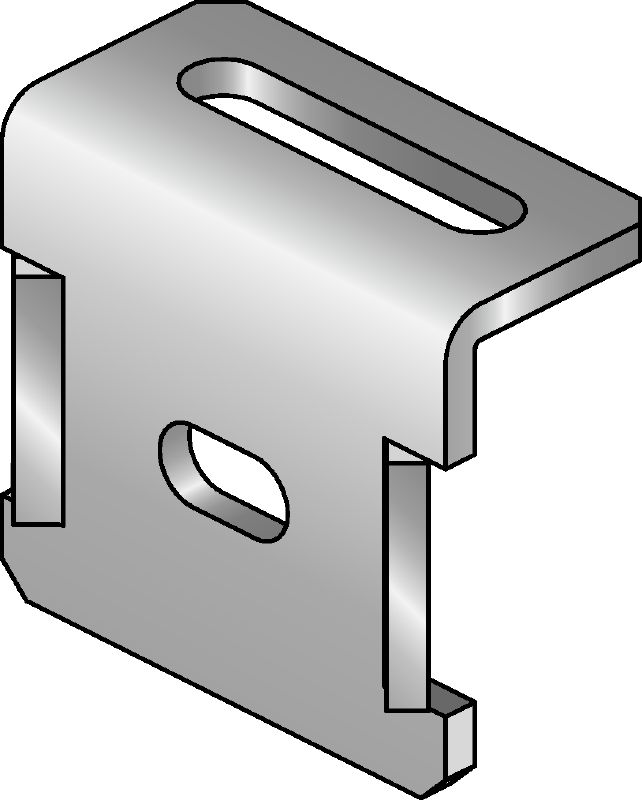

Connector U-bolt MIC-UB90-M12 #304831

Hot-dip galvanised (HDG) connector for fastening U-bolts to MI girders

Thread connection - M: M12
Weight: 1.27 kg
Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Washer: DIN EN ISO 7089; Bolt: Steel grade 8.8; Nut: Steel grade 8

Modular Girder Type

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 19.904

OMR 19.900 / 1 each

Thread connection - M

M12

Weight

1.27 kg

Material composition

Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Washer: DIN EN ISO 7089; Bolt: Steel grade 8.8; Nut: Steel grade 8

Surface finish

HDG: connector, square washer 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Wrench size

19 mm
