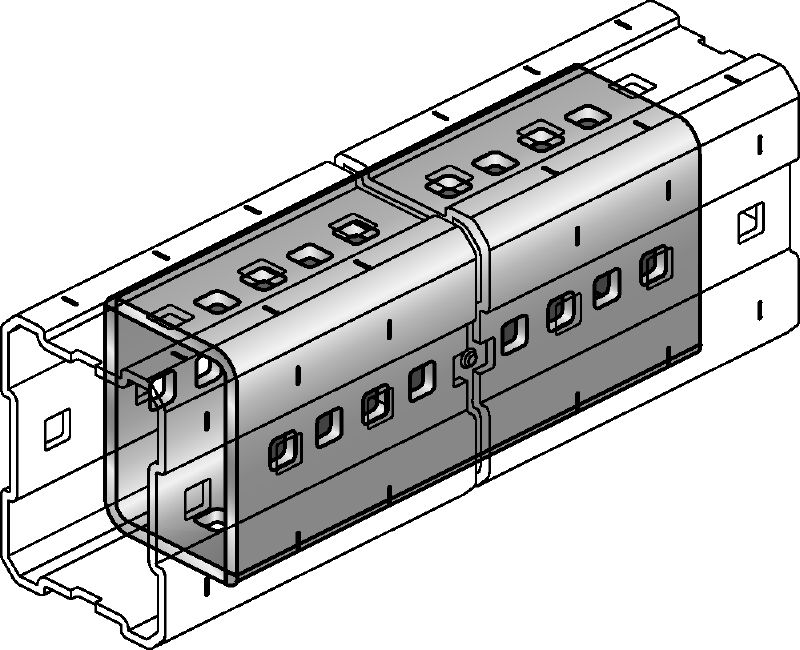

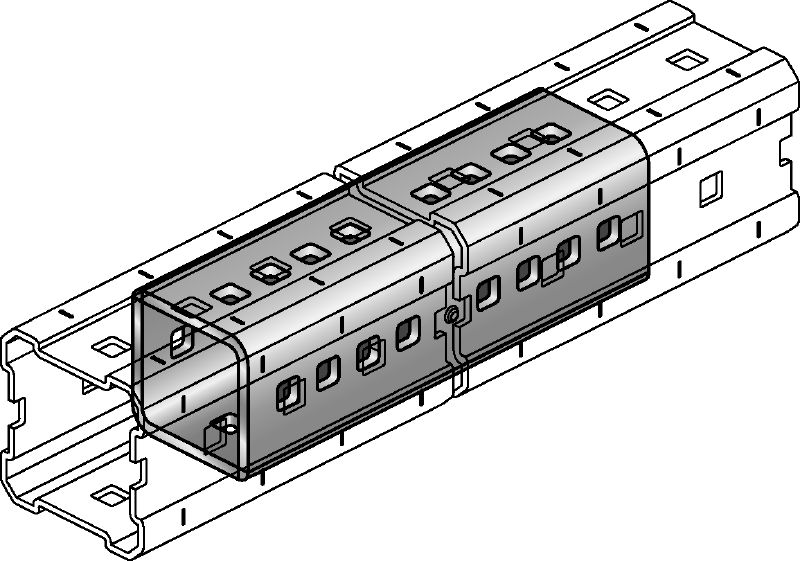

MIC-E Connector
Hot-dip galvanised (HDG) connector used to connect MI girders longitudinally for long spans in heavy-duty applications
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Customers also searched for 3d channel systems, connecting girders, cable tray installations, piping installations or metal connectors.
Choose options
Modular Girder Type
- 90
- 120
Pack size
- 2 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- Designed for faster and more efficient installation
- Positive locking hold for optimum transmission of forces and moments
- Connector comes with self-locking nuts to help protect against vibration
- Built-in stop helps prevent the extension sliding right inside the girder
Applications
- Connecting MI girders to each other longitudinally
For approval or certificate information, please see individual items.
