MQT-C-F Beam clamp
Beam clamp MQT-C23-F #304195

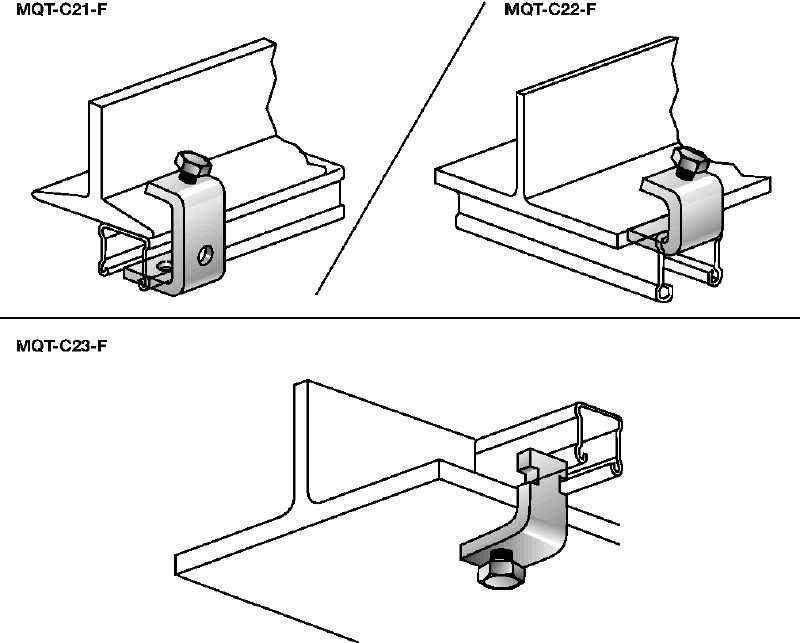

Hot-dip galvanised (HDG) beam clamp for connecting MQ strut channels directly to steel beams
- Tightening torque: 40 Nm
- Material composition: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
Choose options
Pack size
- 6 pc
Quantity
Packs
Total Pieces
6
Discounted net
OMR 4.944
OMR 4.940 / 1 each
Technical Data
Tightening torque
40 Nm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Material thickness
10 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
260 g
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
- Easy readjustment possible
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
