MQT-K Clamping bracket

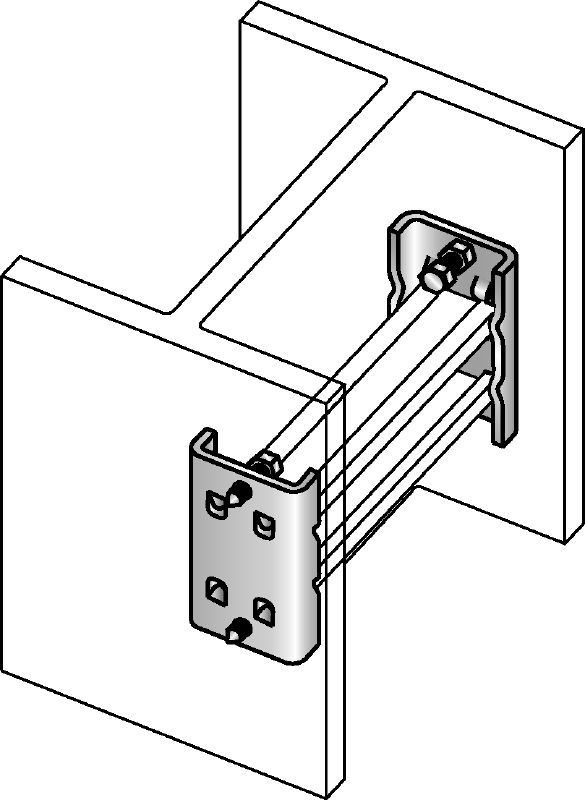

Galvanised beam clamp for connecting MQ strut channels within the flanges of steel beams
- Material composition: S235JRG2 - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 5 mm
Choose options
Pack size
- 5 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Material composition
S235JRG2 - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
5 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
Applications
- Compatible with steel double T-beams and U-beams
- Compatible with MQ-21D, MQ-41, MQ-41/3
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
