MIC-MI/MQ-X

Connector MIC-MI/MQ-X #304881

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG002377_HDG_v1 (202986)
IS_HNA_318_o.eps
LCG000944.tiff
IS_ME_318.eps
IS_HNA_318.eps

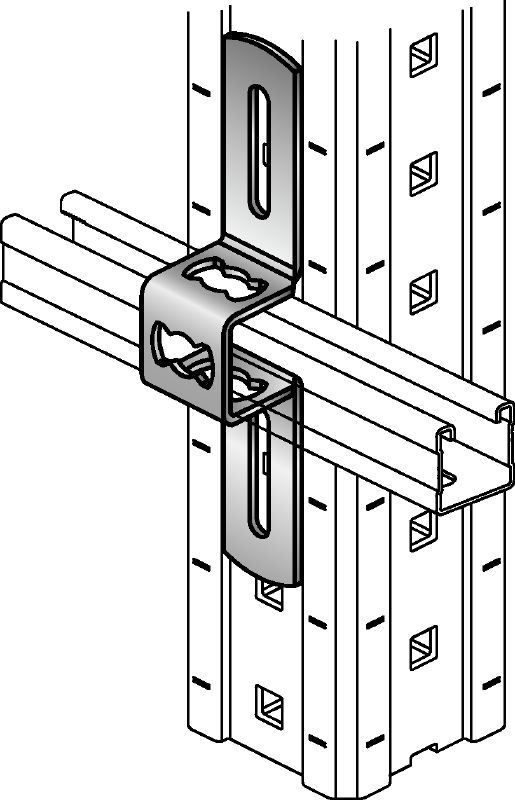

Hot-dip galvanised (HDG) connector for fastening MQ strut channels perpendicular to MI girders

  • Weight: 0.36 kg
  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 40 µm - DIN EN ISO 10684

Choose options

Modular Girder Type
  • 90, 120
Pack size
  • 16 pc
 Product options
Quantity
Packs
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 123.515
OMR 24.700
/
1 each

Technical Data

Details
Technical illustrations
Weight
0.36 kg
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 40 µm - DIN EN ISO 10684
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
50 Nm

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Allows direct connection to MQ strut channels
  • Keyed hold for optimum transmission of forces and moments
  • Forces and moments are transmitted reliably through positive engagement

Applications

  • Direct connection of MQ installation channels to the MI system
  • Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations

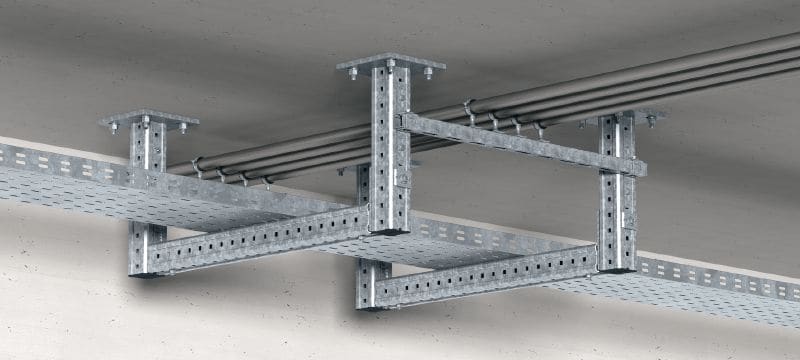

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
