MIC-S Connector

IS_HNA_312_o.eps
IS_HNA_313_o.eps
LCG001007.tiff
LCG001029.tiff
IS_HNA_312_o.eps
IS_HNA_313_o.eps
LCG001007.tiff
LCG001029.tiff

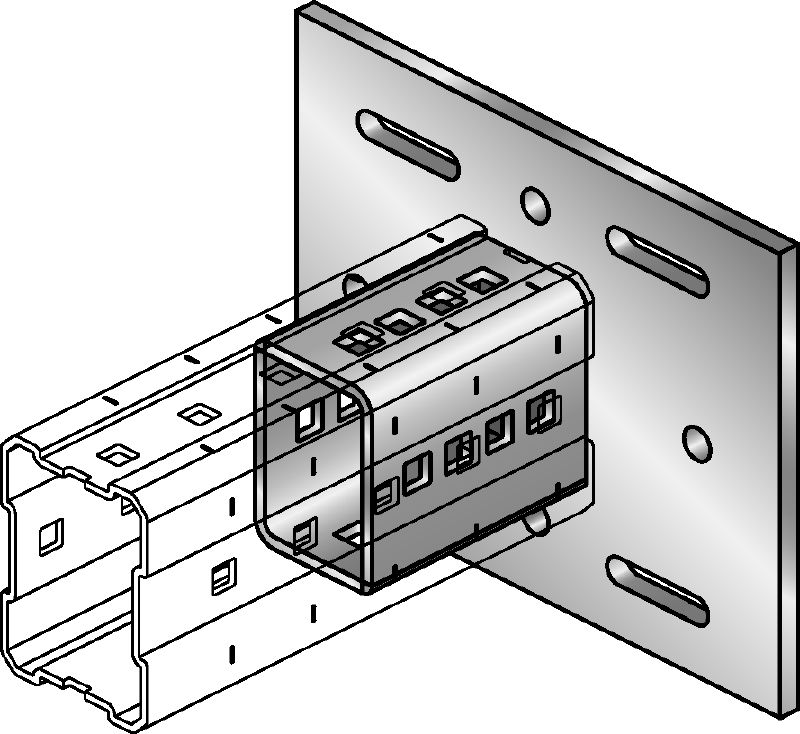

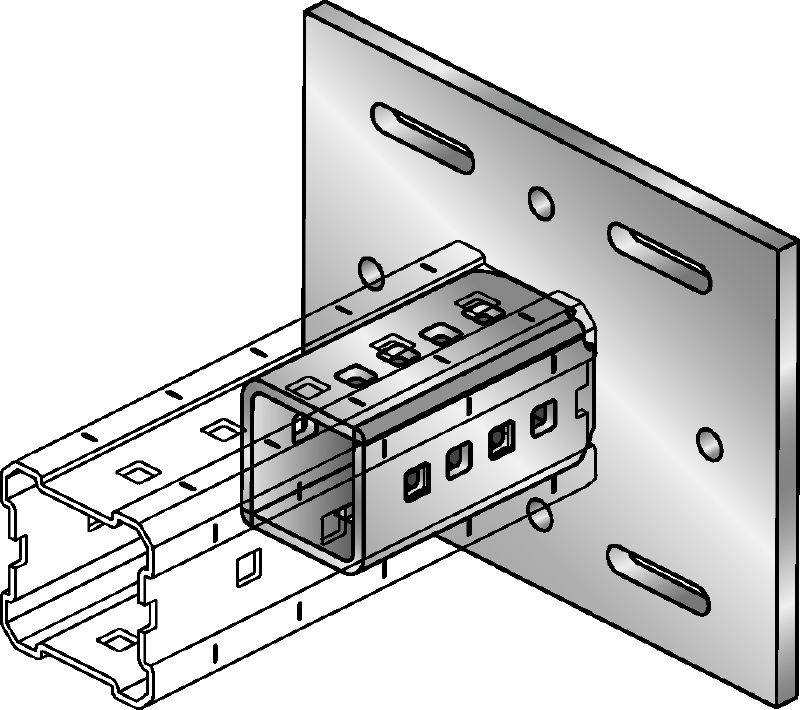

Connector for attaching modular girders to structural steel beams

  • Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Modular Girder Type
  • 90
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 169.980

Technical Data

Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Provides a strong and rigid connection
  • Designed to cover a large range of standard flange widths
  • Adjustable and flexible – for easier, more efficient installation
  • Can be easily connected to steel using beam clamps (not included)
  • All parts are reusable

Applications

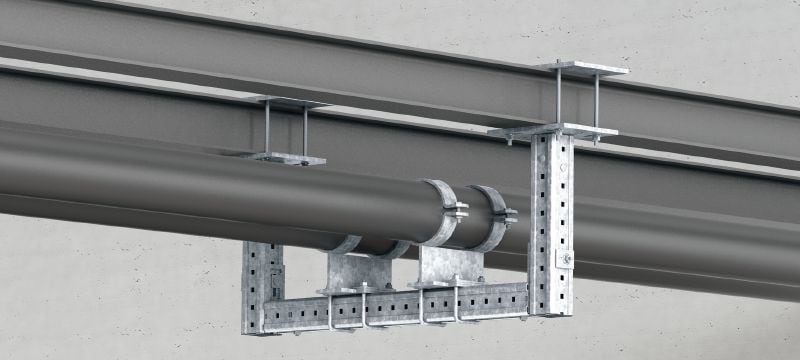

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Provides easy-to-install, adjustable, flexible solutions for industrial and heavy commercial applications
  • Fastening to standard steel beams without drilling or welding

For approval or certificate information, please see individual items.
