MI-SGC M16

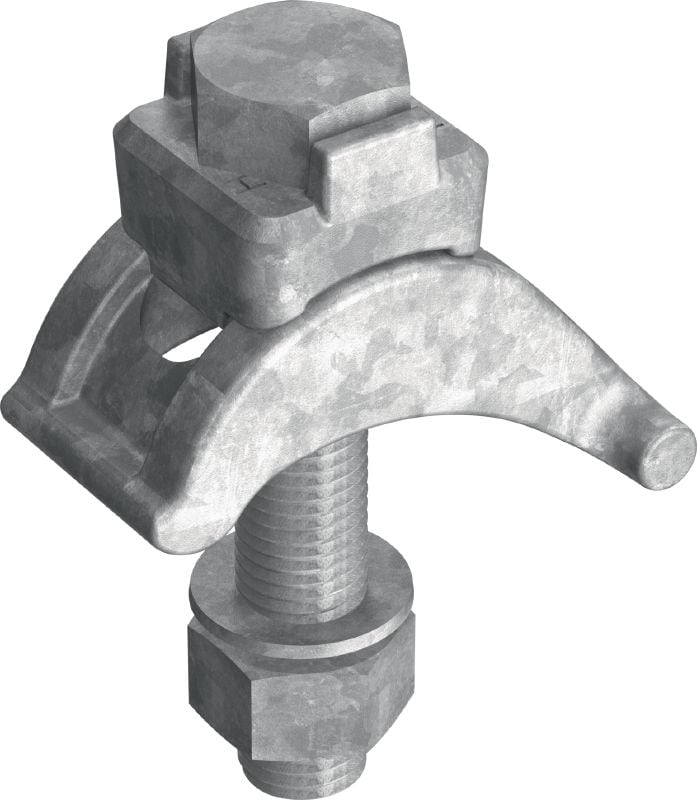

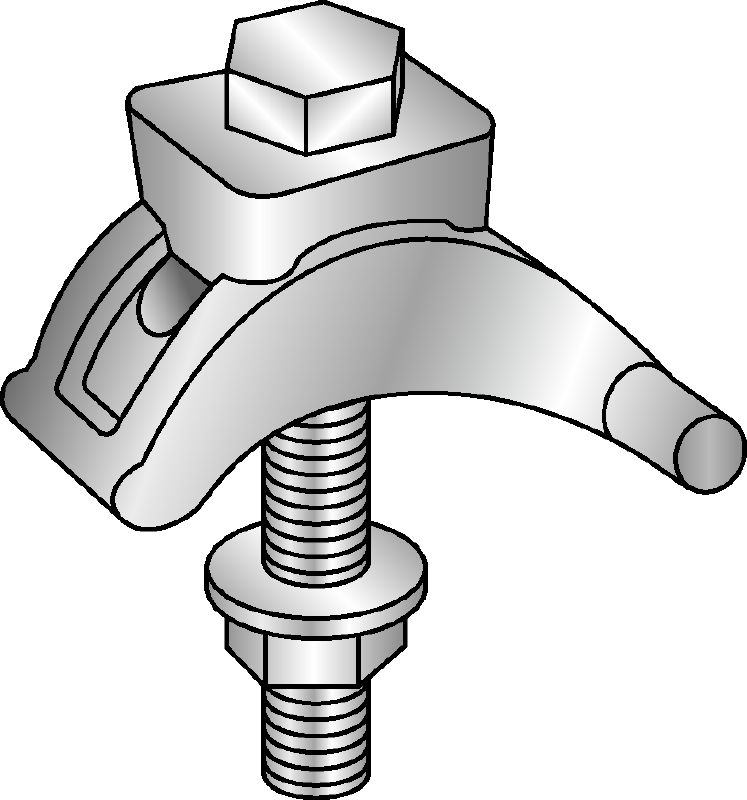

Beam clamp MI-SGC-M16 #387398
Hot-dip galvanised (HDG) single beam clamp for connecting MI steel baseplates to steel beams
- Thread connection - M: M16
- Weight: 0.51 kg
- Surface finish: HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Choose options
Pack size
- 12 pc
Quantity
Packs
Total Pieces
12
Discounted net
OMR 14.347
OMR 14.350 / 1 each
Technical Data
Thread connection - M
M16
Weight
0.51 kg
Surface finish
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
180 Nm
Wrench size
24 mm
Width - B
34 mm
Documents
Features & Applications
Features
- For steel beams with flange thicknesses from 3 to 36 mm and angles of up to 15°
- Corrosion protection of steel beam is not damaged by beam clamp
- Beam clamp is equipped with set of vibration-resistant washers
Applications
- Compatible with steel beams with flange thicknesses from 12-28 mm and angle of up to 15°
