MQP-R Channel foot

Rail support MQP-21-72-R #304047

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG002231_v1 (199206)
IS_HNA_234_o.eps
IS_ME_234.eps

Stainless steel (A4) channel foot for fastening channels to various base materials

  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel
  • Material thickness: Channel connector: 4 mm, Baseplate: 6 mm

Customers also searched for stainless steel connectors, SS connectors, metal connectors or Channel Systems.

Choose options

Pack size
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
12
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 60.424
OMR 60.420
/
1 each

Technical Data

Details

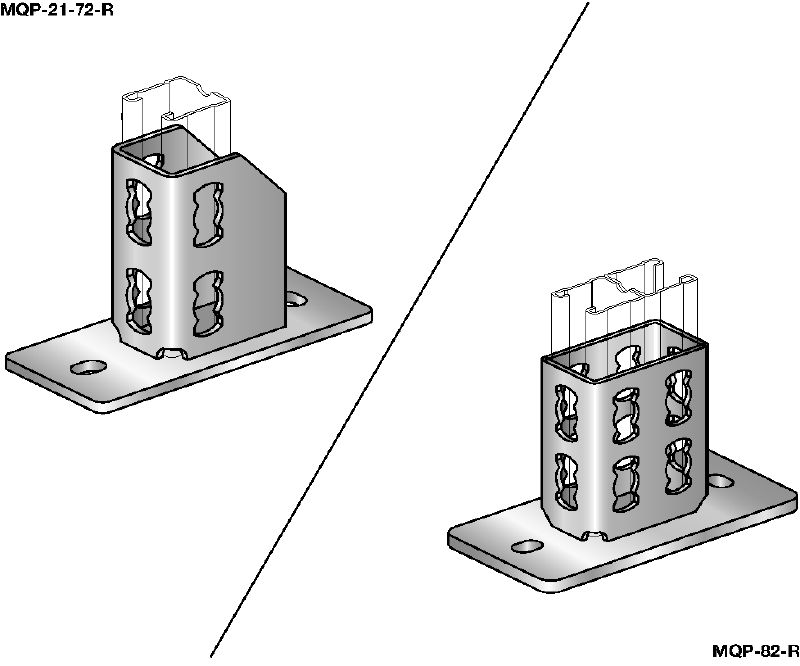

Technical illustrations
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Material thickness
Channel connector: 4 mm, Baseplate: 6 mm
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
1150 g

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Flexibility – complete many different applications using few parts
  • Acoustic insulation – when used with the MVI-P insulation plate for MQP-21-72 rail supports
  • Compatible with MQN-R push button channel connectors – for much faster, adaptable assembly
  • The MQN-R pushbutton can be prefitted
  • Pre-assembly of the MQN-R pushbutton is possible

Applications

  • Connecting strut channels to various base materials
