MQM-R Wing nut

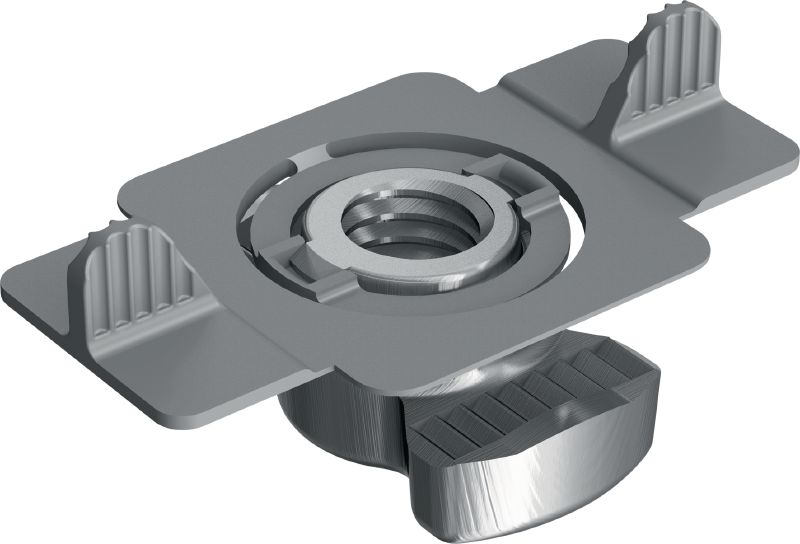

Wing nut MQM-M10-R #304016
Stainless steel wing nut for connecting modular support system components
- Tightening torque: 40 Nm
- Thread connection - M: M10
- Material composition: Nut: 1.4581 (A4) - DIN EN 10283, Wings: plastic PA
Customers also searched for stainless steel wing nut, connecting threaded rod, stainless steel connectors, metal connectors or installation channel.
Choose options
Thread connection - M
- M10
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
OMR 4.325
OMR 4.330 / 1 each
Technical Data
Tightening torque
40 Nm
Thread connection - M
M10
Material composition
Nut: 1.4581 (A4) - DIN EN 10283, Wings: plastic PA
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
24 g
Documents
Features & Applications
Features

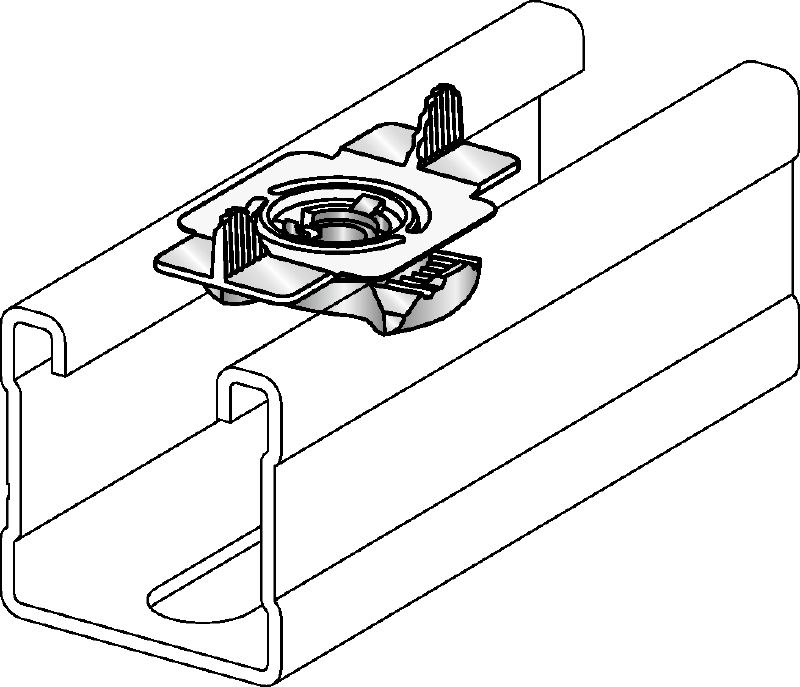

- Quick connection of modular support system components to the open side of MQ strut channel
- Flexible wings – for quicker installation and positioning within MQ strut channel openings
- Serrated surfaces – for quicker, more accurate adjustment
- Compact dimensions
- Allows use in shallow, standard and deep channel profiles
Applications
- Fastening pipes and air ducts
- Fastening cable trays and cable baskets
