MQS-H Rod brace connector

Configurator
Technical Data
Features & Applications
Related Products
IS_MQS_006_o.eps

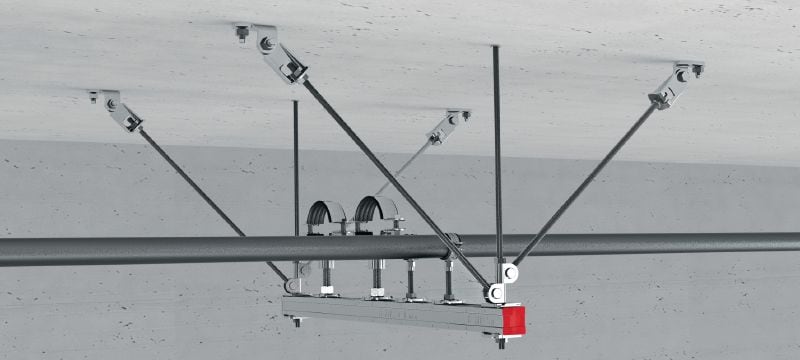

MQS rod/rod Trapeze
LCG001327_v2.tiff
LCG001328_v2.tiff

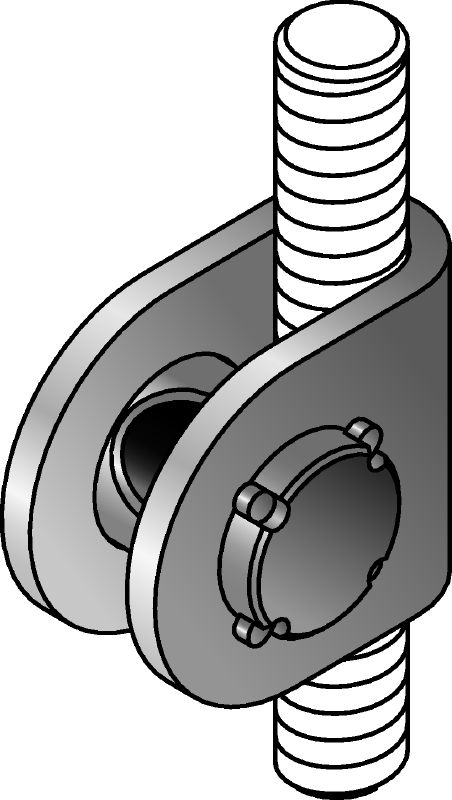

MQS-H-12, MQS-H-8, MQS-H-10

Galvanised pre-assembled threaded rod brace connector with increased angle adjustability to connect 2 threaded rods for a wide range of seismic applications

  • Material composition: Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 3 mm

Choose options

Diameter - D
  • 8 mm
  • 12 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 4.594

Technical Data

Details
Technical illustrations
Material composition
Connector: S275JR - DIN EN 10025, Pin: 11SMnPb37+C
Surface finish
Indoor Coated - Electro galvanised
Material thickness
3 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Thread - M
M10

Features & Applications

Features

  • Easy and quick to mount to threaded rods
  • Maximum installation flexibility due to adjustable angle
  • Three versions available to fit the main vertical rod sizes (M8, M10, M12)
  • High load capacity – engineered for optimal transfer of seismic loads
  • High load capacity for optimal transfer of seismic loads

Applications

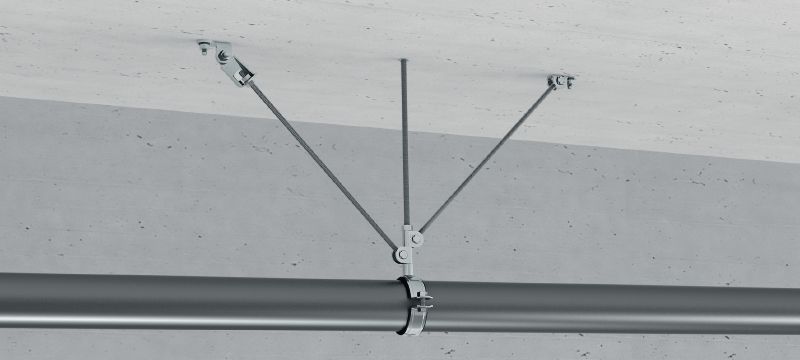

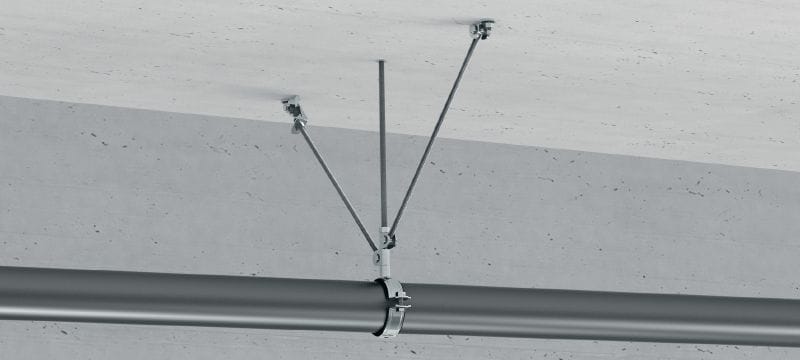

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in a wide range of seismic applications

For approval or certificate information, please see individual items.
