MQS-AB Rod brace connector

Configurator
Technical Data
Features & Applications
Related Products
IS_MQS_003_o.eps
LCG001325_v3.tiff
IS_MQS_003.eps

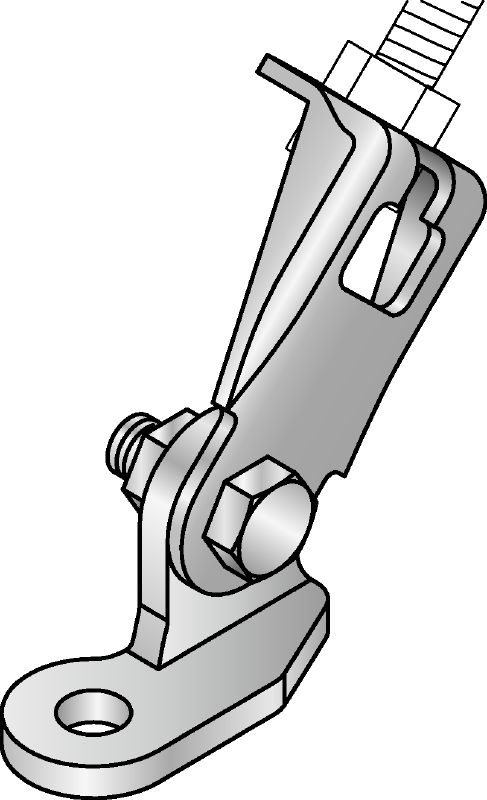

Galvanised pre-assembled threaded rod brace connector with increased installation flexibility for a wide range of seismic applications

  • Material composition: DD11 - DIN EN 10111, S235JR - DIN EN 10025, Base plate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Diameter - D
  • 9.4 mm
  • 16.3 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 8.748

Technical Data

Details
Technical illustrations
Material composition
DD11 - DIN EN 10111, S235JR - DIN EN 10025, Base plate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Features & Applications

Features

  • Designed for quicker, easier attachment to MQ modular support systems
  • Maximum installation flexibility due to adjustable angle
  • Threaded rod can be easily inserted into the connector and locked by tightening the nut
  • High load capacity – engineered for optimal transfer of seismic loads
  • Can be anchored directly to the base material or fastened to the MQS-W seismic angle

Applications

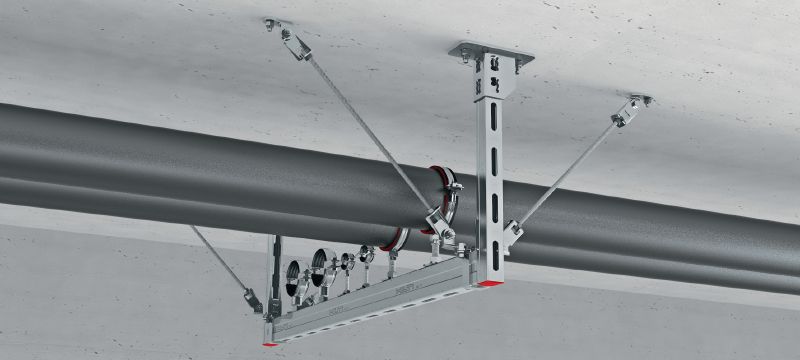

  • Installing pipes, cable trays and air duct supports in seismic-relevant areas
  • Assembling seismic bracing using threaded rods in a wide range of seismic applications
  • Used for seismic bracing of large-diameter pipes directly fastened to the pipe clamps flanges

For approval or certificate information, please see individual items.
