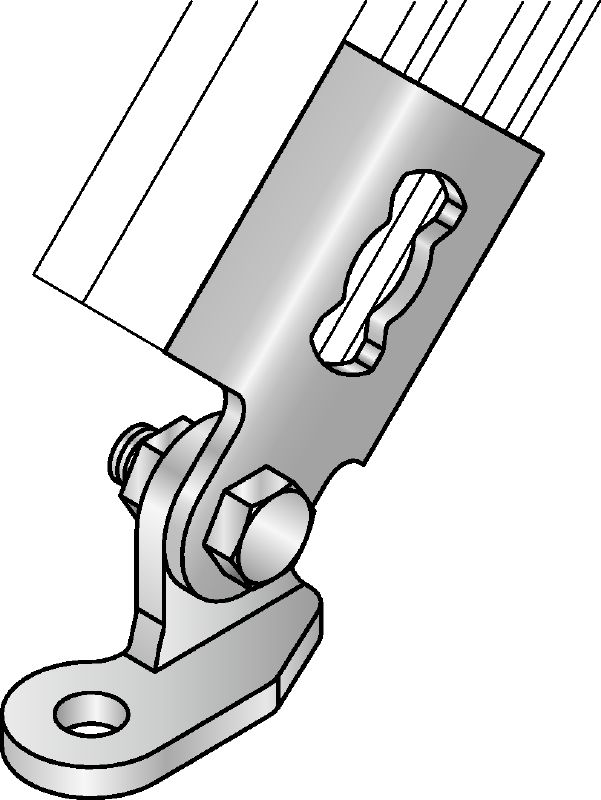

MQS-AC Channel brace connector

Seismic hinge MQS-AC-10 #2083725

Galvanised pre-assembled channel brace connector with increased installation flexibility for a wide range of seismic applications

Diameter - D: 11.5 mm
Material composition: Connector: S275JR - DIN EN 10025, Base plate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish: Indoor Coated - Electro galvanised

Diameter - D

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 7.473

OMR 7.470 / 1 each

Diameter - D

11.5 mm

Material composition

Connector: S275JR - DIN EN 10025, Base plate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Weight

231 g

Designed for quicker, easier attachment to MQ modular support systems
Maximum installation flexibility due to adjustable angle
Single MQN connection to MQ modular support systems for medium-duty seismic loads
High load capacity – engineered for optimal transfer of seismic loads
Mounting holes in two sizes for a perfect fit with the most suitable anchor

Installing pipes, cable trays and air duct supports in seismic-relevant areas
Assembling seismic bracing using MQ modular support systems for a wide range of seismic applications
