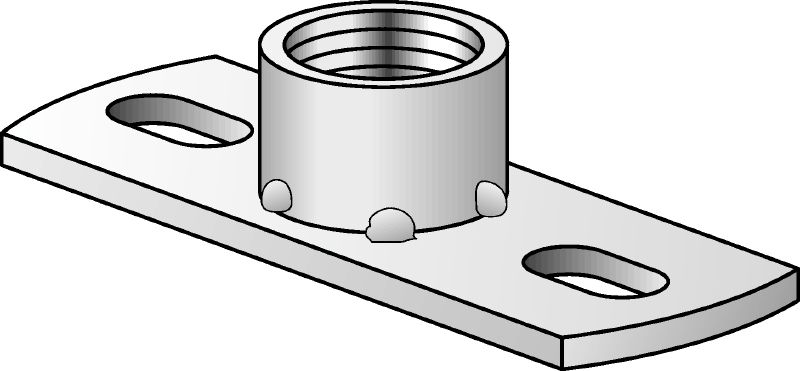

MGL 2 light-duty base plate
2-hole baseplate MGL 2-1/2" #246912
Galvanised light-duty base plate to fasten imperial threaded rods with two anchor points
- Thread connection - M: 1/2 in
- Height - H: 18 mm
- Maximum tensile load - F: 4 kN
Choose options
Thread connection - M
- 1/2 in
Height - H
- 18 mm
Maximum tensile load - F
- 4 kN
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
OMR 2.184
OMR 2.180 / 1 each
Technical Data
Thread connection - M
1/2 in
Height - H
18 mm
Maximum tensile load - F
4 kN
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Number of holes
2
Weight
0.08 kg
Features & Applications
Features
- Easy to install threaded rods
- Secure connection with two anchor points
Applications
- Fastening light-duty pipes to concrete with two fastening points
- Recommended for use in dry, interior environments
