MF-SKD pivot anchors

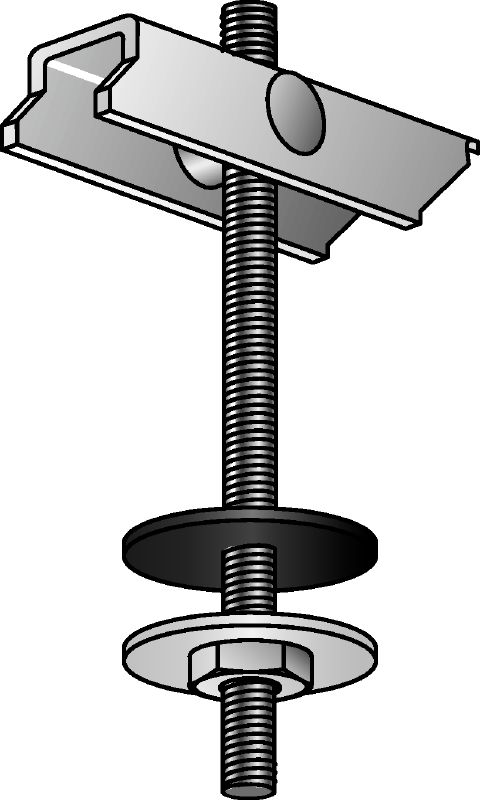

Pivot anchor MF-SKD M10/100 #230608
Galvanised pivot anchors for use in trapezoidal metal sheets
- Approvals: FM approved
- Thread - M: M10
- Material composition: Carbon steel
Choose options
Thread - M
- M10
Thread length - L
- 100 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
OMR 5.034
OMR 5.030 / 1 each
Technical Data
Approvals
FM approved
Thread - M
M10
Material composition
Carbon steel
Surface finish
Indoor Coated - Electro galvanised
Thread length - L
100 mm
Height - H
65 mm
Weight
137 g
Hole diameter - D
25 mm
Base material type
Trapezoidal sheet
Cavity depth
90 mm
Load range
Light-duty
Maximum tensile load - F
8 kN
Documents
Features & Applications
Features
- Threaded rod allows individual levelling of each point of attachment
- Preassembled with washer and hex bolt
- Threaded rod secured to prevent loss
Applications
- Fastening sprinkler pipes to trapezoidal sheets
- Fastening supporting crossbeams and ventilation ducts
- Fastening contact rails, mounting rails and lighting tracks
- Recommended for use in dry, interior environments
