MVA-LH

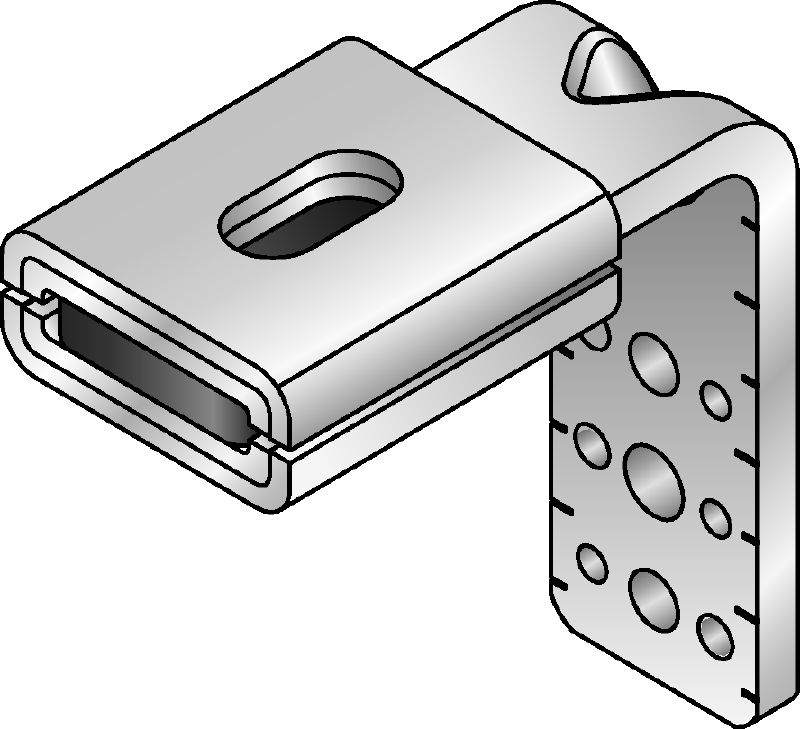

Air duct bracket MVA-LH #2047749
Galvanised heavy air duct bracket for fastening heavy ventilation ducts
- Approvals: Acustic insulaton DIN 4109 inspected
- Length - L: 80 mm
- Thread connection - M: M8, M10
Choose options
Thread connection - M
- M8, M10
Length - L
- 80 mm
Maximum load - F
- 800 N
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
OMR 3.328
OMR 3.330 / 1 each
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected
Length - L
80 mm
Thread connection - M
M8, M10
Noise reduction
12 dB (A)
Maximum load - F
800 N
Insulation material
EPDM rubber
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C
Documents
Features & Applications
Features
- Engineered for heavy loads
- Convenient solution for bridging the thickness of the insulation (up to 30 mm)
- Elongated hole – for compensation of building tolerances
- Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3) blind rivets and metric screws
- Rapid installation possible with in-place parts
Applications

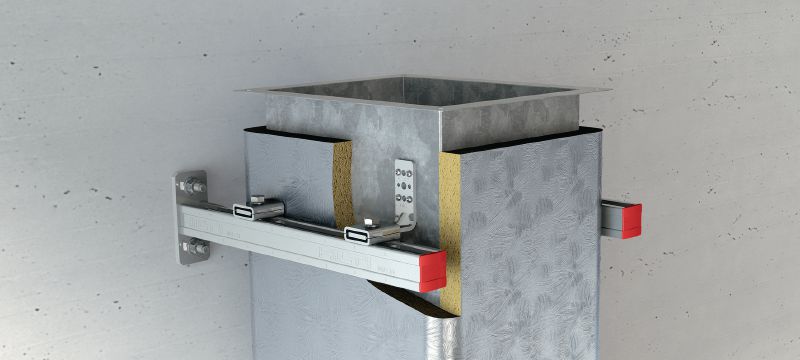

- Fastening rectangular air ducts in vertical shafts
