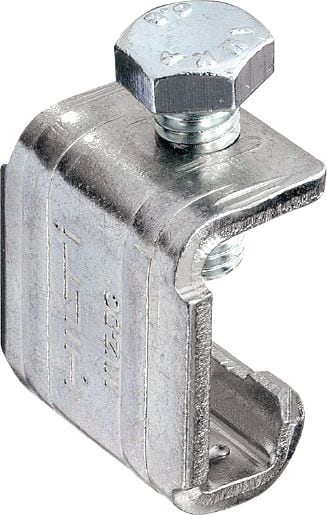

MVZ-DC air duct clamp
Air duct clamp MVZ-DC 20/30 #2048088
Galvanised air duct clamp for use with regular ducts
- Tightening torque: 5 Nm
- Material composition: DD11 - DIN EN 10111
- Surface finish: Indoor Coated - Electro galvanised
Choose options
Tightening torque
- 5 Nm
Clamping range - D (max.)
- 30 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
100
Discounted net
OMR 0.688
OMR 0.690 / 1 each
Technical Data
Tightening torque
5 Nm
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Easy to install with screws – no preliminary installation and drilling required
- Can also be used as additional fastening with large ducts
- Easy to install using a power screwdriver – no preliminary clamping or drilling required
- Can also be used as additional fastening with large ducts
- Easy to install using a power screwdriver - no preliminary clamping or drilling required
Applications
- Connector for rectangular air ducts
