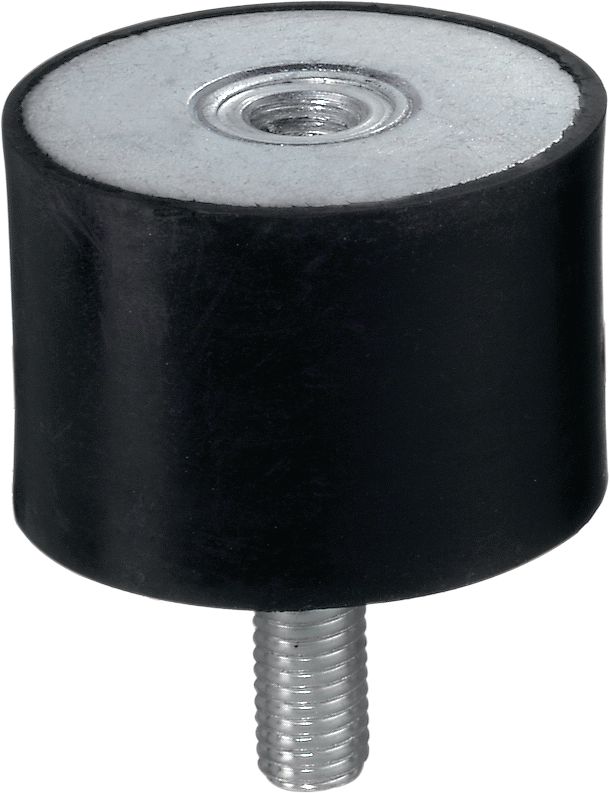

MVI-T Galvanised silencer
Galvanised silencer for use with compressive loads
- Material composition: Connecting part: chromated galvanized steel, Insulation material: EPDM
- Resistance: Sunlight, weathering, environmental influences
- Surface finish: Indoor Coated - Electro galvanised
Choose options
Thread connection - M
- M10
Maximum shear load - F
- 300 N
Width - B
- 25 mm
Pack size
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 3.728
Technical Data
Material composition
Connecting part: chromated galvanized steel, Insulation material: EPDM
Resistance
Sunlight, weathering, environmental influences
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
55° ±5° Shore A
Temperature resistance
-30 - 150 °C
Features & Applications
Features
- Can be fitted directly to installation channels and brackets
- Designed to be reliable and easy to use
Applications
- Sound absorber for compressive loads
- Recommended for use in dry, interior environments
- Suitable for M8 connections
For approval or certificate information, please see individual items.
