MQZ-L-R Bored plate
Bored plate MQZ-L11-R #304072

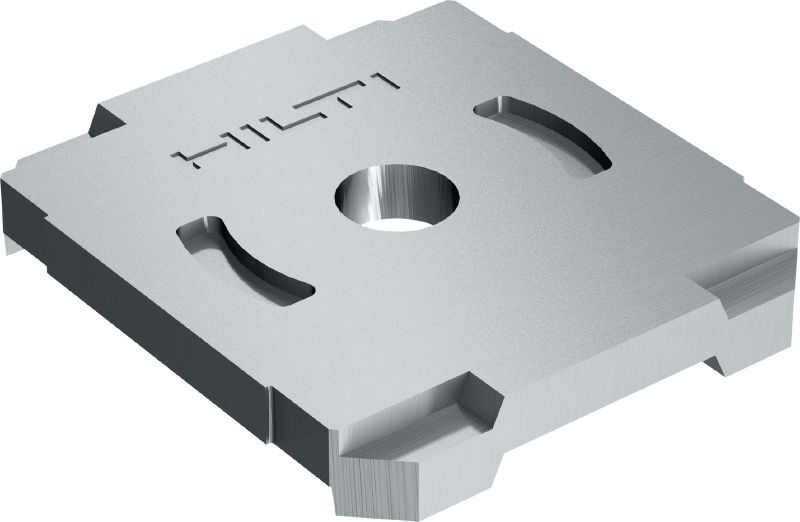

Stainless steel (A4) bored plate for trapeze assembly and anchoring
- Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
- Surface finish: Outdoor Plus - Stainless Steel
- Environmental conditions: Outdoor high pollution (C4 – high / C5)
Customers also searched for stainless steel connectors, SS connectors, metal connectors or Channel Systems.
Choose options
Hole diameter - D
- 11.5 mm
Pack size
- 20 pc
Quantity
Packs
Total Pieces
20
Discounted net
OMR 4.179
OMR 4.180 / 1 each
Technical Data
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
82 g
Features & Applications
Features

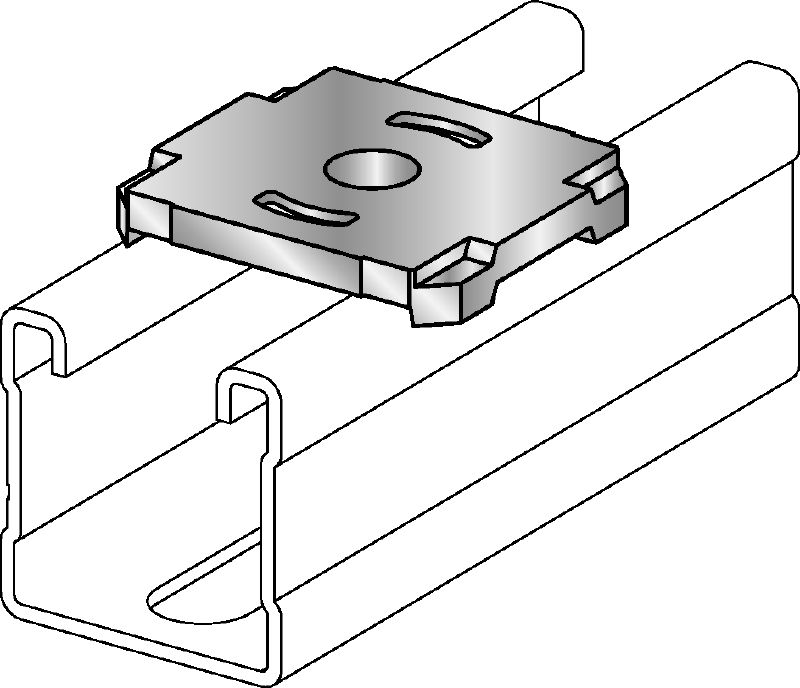

- Suitable for MQ strut channels and brackets
- Easy-to-use single part
- Suitable for MQ installation channels and brackets
Applications

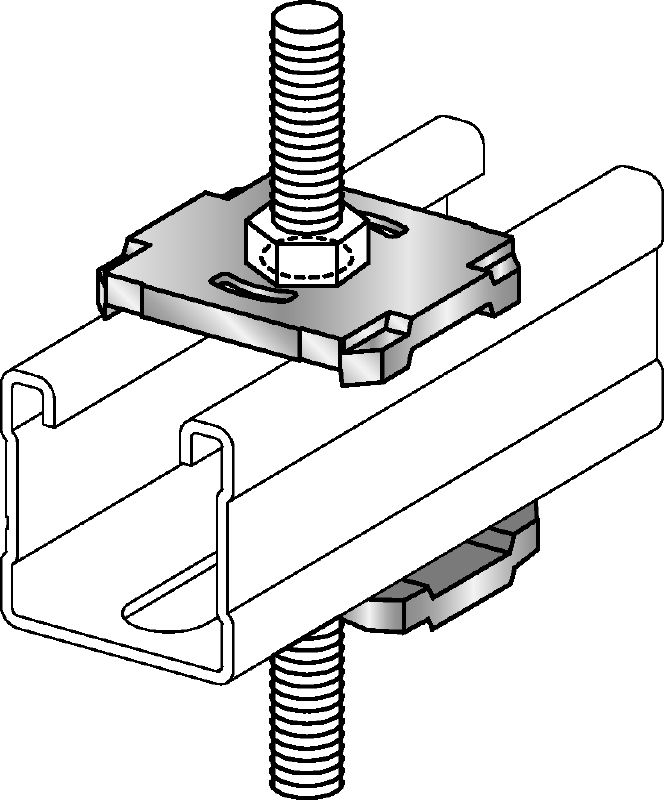

- Attaching strut channels and brackets to walls, ceilings or floors
- Wing nut or spring nut applications with channels or brackets
- Anchor fastening of installation channels
