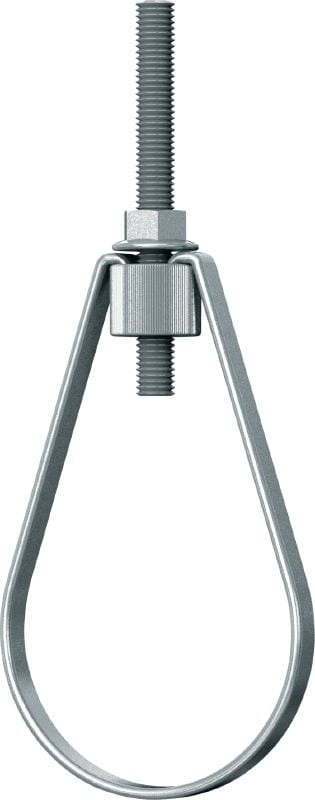

MP-SPN sprinkler pipe hanger
Galvanised sprinkler loop hanger with VdS, FM and UL approvals for fire sprinkler applications
- Material composition: DX51D Z275 - DIN EN 10327
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Clamping range - D
- 26.9 - 28 mm
- 33.7 - 35 mm
- 42 - 44.5 mm
- 48.3 - 51 mm
- 57 - 64 mm
- 70 - 76.1 mm
- 82.5 - 88.9 mm
- 108 - 114.3 mm
- 159 - 159 mm
- 165.1 - 168.3 mm
Thread connection - M
- M8
- M10
- M12
Nominal pipe size (imperial)
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 4 in
- 6 in
Pack size
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 1.576
Technical Data
Material composition
DX51D Z275 - DIN EN 10327
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Insert pipe, hang, adjust – designed for time-saving, high-productivity sprinkler installation
- Height adjuster nut to simplify leveling
- VdS-, FM (≥ M10)- and UL (≥ M10)-approved pipe hanger
Applications

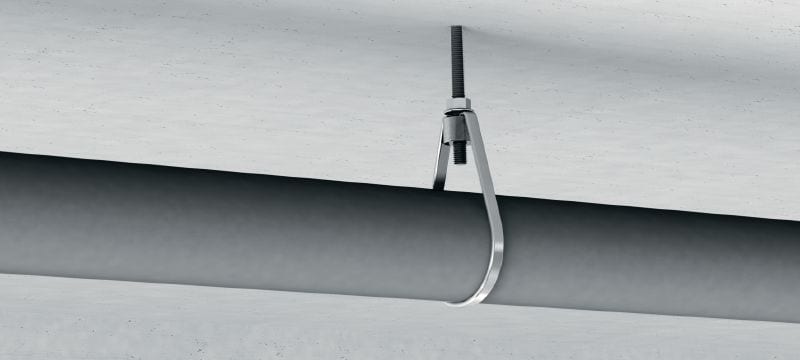

- single-point fastening for fire sprinkler applications
- Sprinkler loops for use in dry interiors only
For approval or certificate information, please see individual items.
