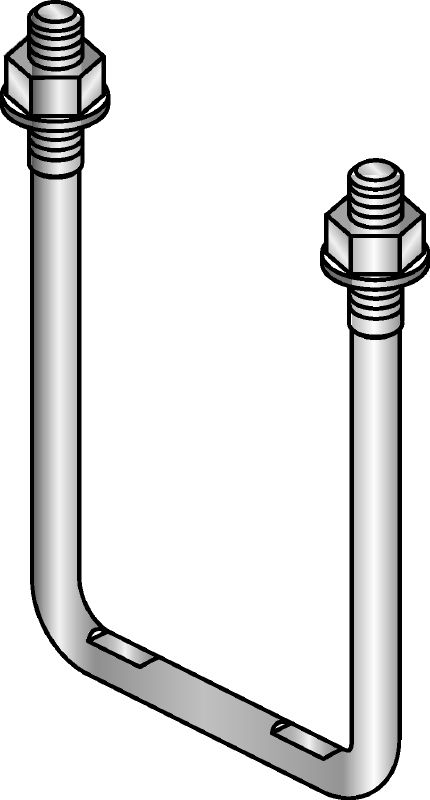

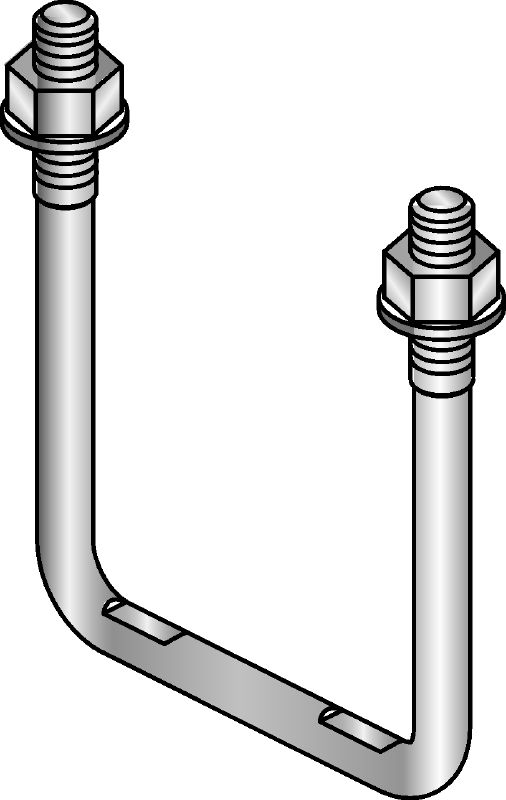

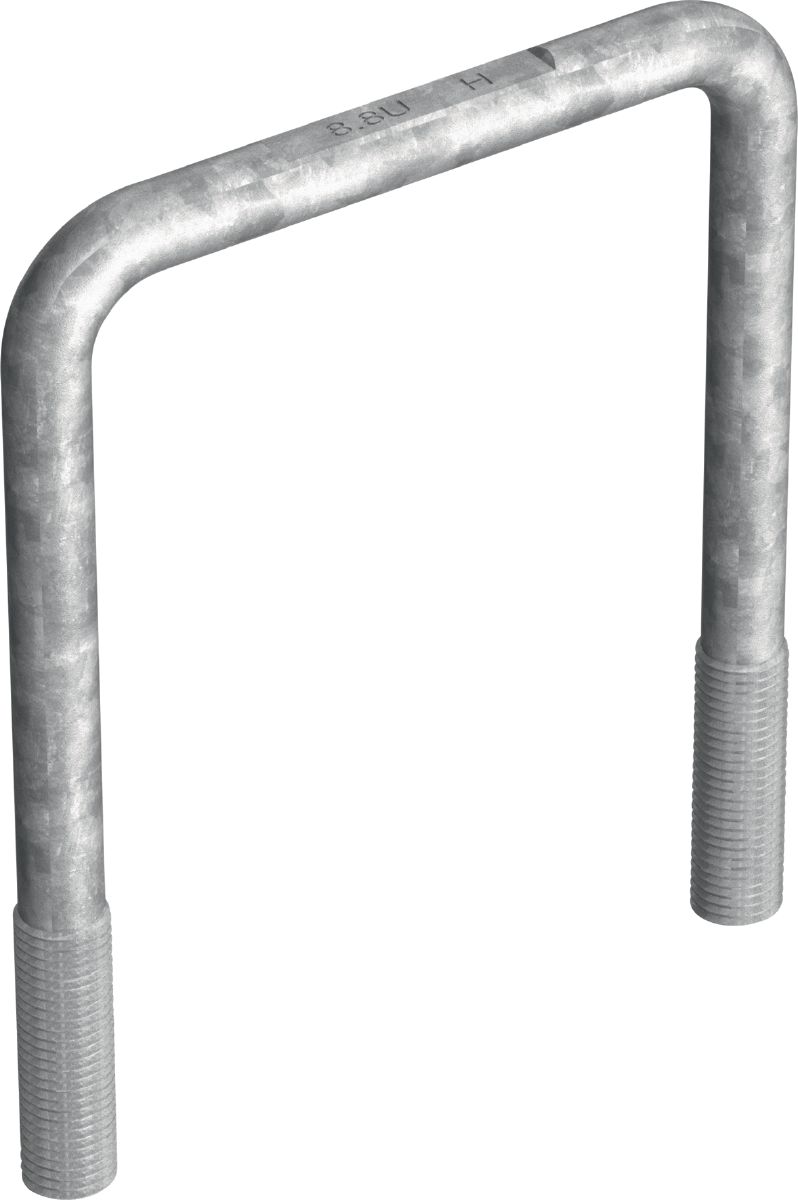

MIA-BO u-bolt

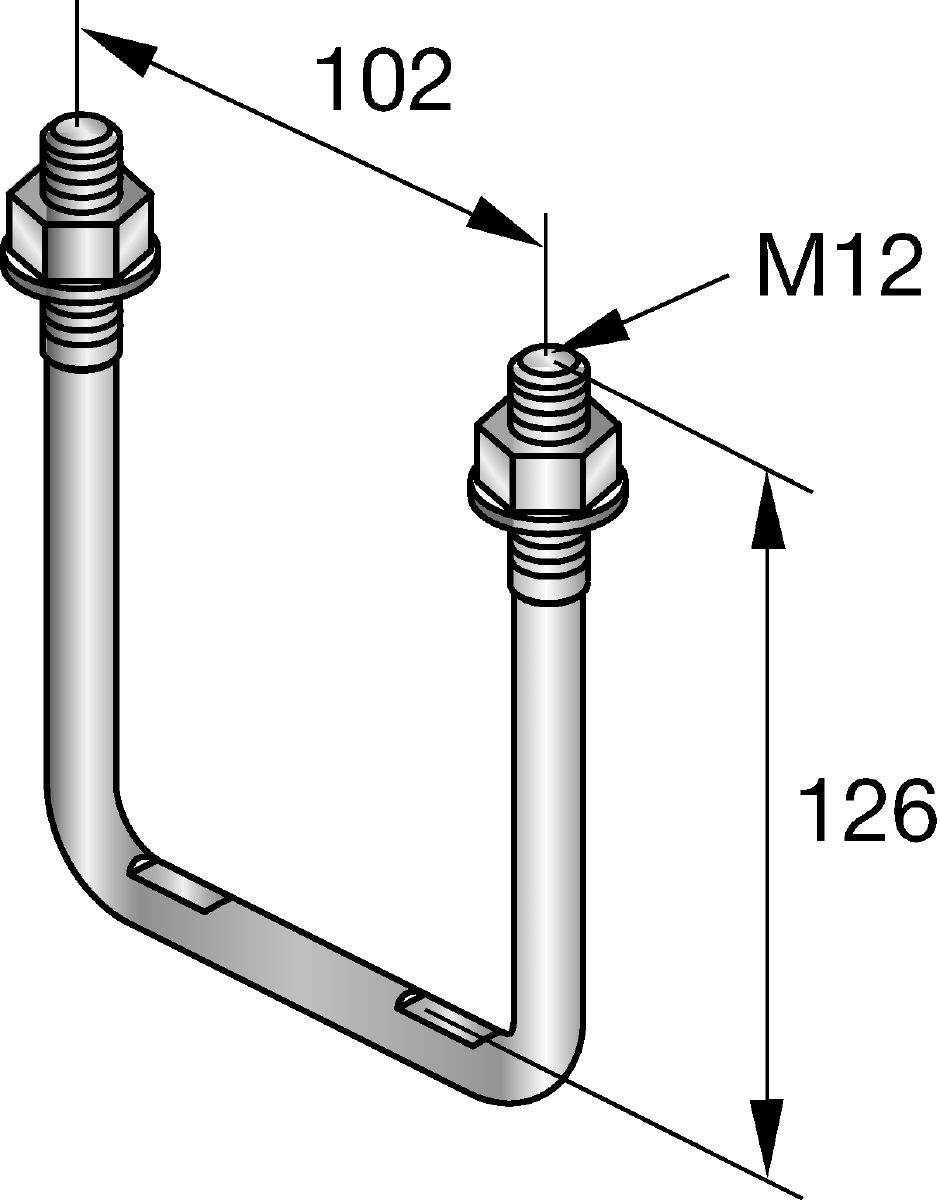

Bow MIA-BO90-M12 #304840

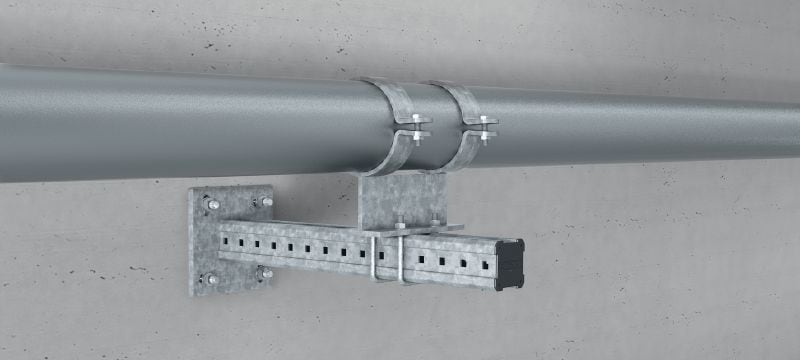

hot-dip galvanised (HDG) u-bolt for fastening pipe shoes to MI girders
- Advantage 01: Quickly and easily install pipe support system for light-duty fixed points
- Weight: 0.58 kg
- Material composition: U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8
Choose options
Modular Girder Type
- 90
Pack size
- 8 pc
Quantity
Packs
Total Pieces
8
Discounted net
Technical Data
Advantage 01
Quickly and easily install pipe support system for light-duty fixed points
Weight
0.58 kg
Material composition
U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8
Surface finish
HDG: 48 µm - DIN EN ISO 10684
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- Quickly and easily install pipe support system for light-duty fixed points
- Part of the MQ system
Applications

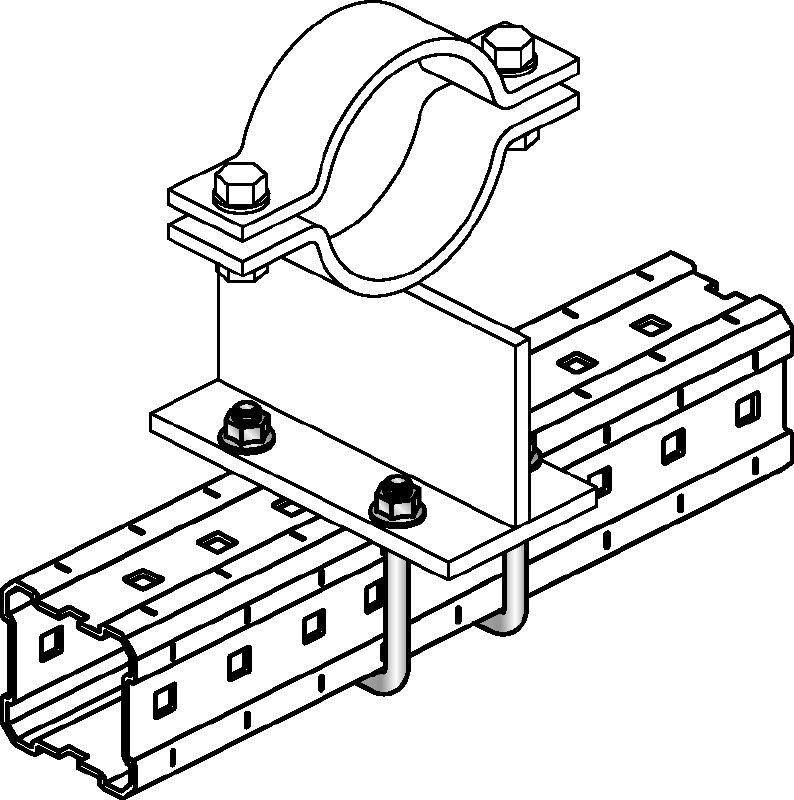

- Fastening pipes, with clamping system for fixed supports
- Installing light-duty fixed points
