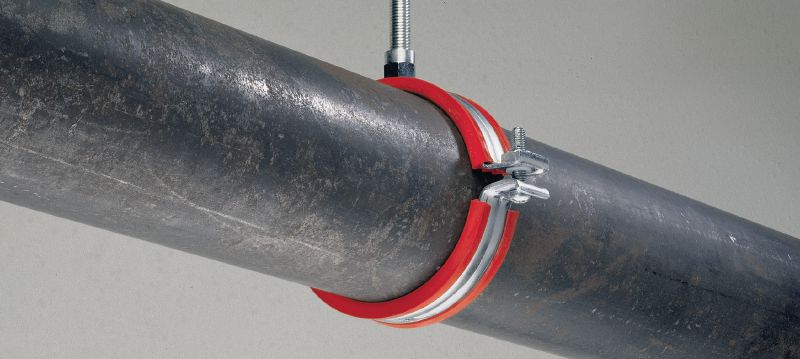

MP-MIS heavy-duty pipe clamp
Galvanised pipe clamp with high temperature resistance inlay for heavy-duty applications
- Noise reduction: 23 dB (A)
- Temperature resistance: -60 - 200 °C
- Material composition: S235JRG - DIN EN 10025
premium
Choose options
Clamping range - D
- 20 - 25 mm
- 25 - 30 mm
- 32 - 38 mm
- 40 - 45 mm
- 48 - 54 mm
- 57 - 64 mm
- 70 - 77 mm
- 82 - 90 mm
- 108 - 114 mm
Thread connection - M
- M10, M12
Nominal pipe size (imperial)
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 4 in
Pack size
- 5 pc
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 5.974
Technical Data
Noise reduction
23 dB (A)
Temperature resistance
-60 - 200 °C
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
Silicone rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium
Documents
Features & Applications
Features
- Solid, welded nuts for closing screws (diameter 68/72 mm and above)
- Pre-assembled non-slip rubber profile insert
- Profiled clamp band for higher rigidity
- High temperature resistance up to +200°C
Applications
- heavy-duty pipe installations up to 250 mm
- Installing industrial pipes
- Fastening pipes subject to an extended temperature range
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
