MI-CF LS Refrigeration pipe clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003615_v3 (227415)
LCG003615_v4 (227419)
LCG003134_v7_cropped (227414)
IS_PC_MI-CF_-LS_0001_(M8-10_G_M) (4502005)

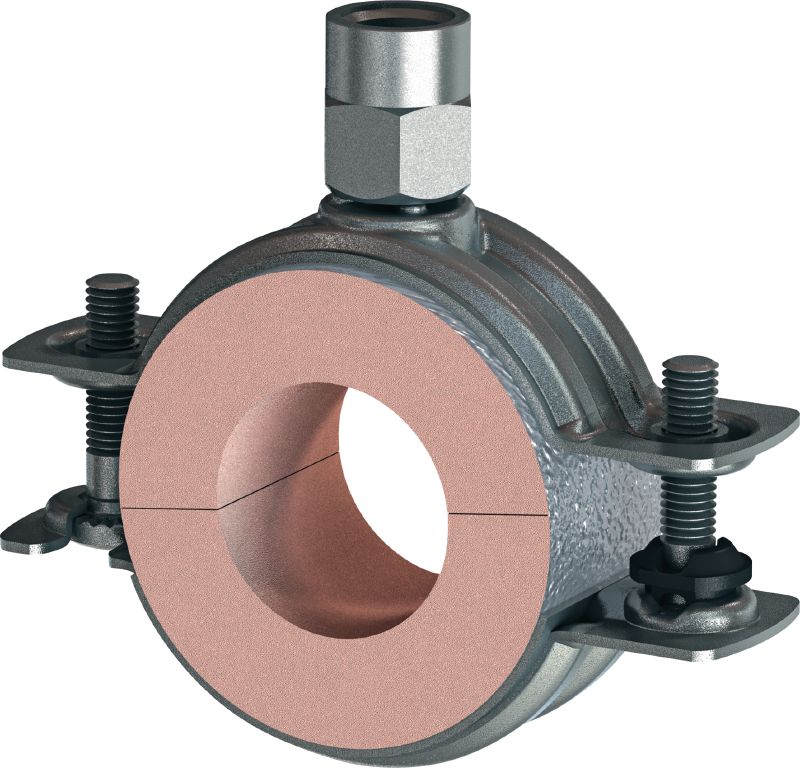

Galvanised pipe clamp with load sharing for refrigeration applications with a variety of insulation thicknesses

  • Approvals: Fire class B2
  • Temperature resistance: -70 - 120 °C
  • Material composition: Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil
standard

Choose options

Thickness - T
  • 40 mm
  • 50 mm
Diameter - D
  • 114.3 mm
  • 133 mm
  • 159 mm
  • 219.1 mm
  • 273 mm
Thread connection - M
  • M16
Nominal pipe size (imperial)
  • 4 in
  • 8 in
Pack size
  • 2 pc
  • 4 pc
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 36.426

Technical Data

Details
Technical illustrations
Approvals
Fire class B2
Temperature resistance
-70 - 120 °C
Material composition
Closed-cell CFC-free polyisocyanurate (PIR) foam, outside aluminium foil
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Standard
Diffusion resistance
Impermeable
Thermal conductivity (λ approx. value)
0.03 W/mK
Compressive strength
0.7 N/mm²
Approx. density
80 kg/m³

Documents

Documentation
Approval document
Sustainability Documentation
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Simpler and faster pre-fitting of most common pipe sizes due to the two-screw pipe clamp with swivel mechanism
  • Large pipe diameters with higher loads can be installed with two-screw heavy-duty pipe clamps

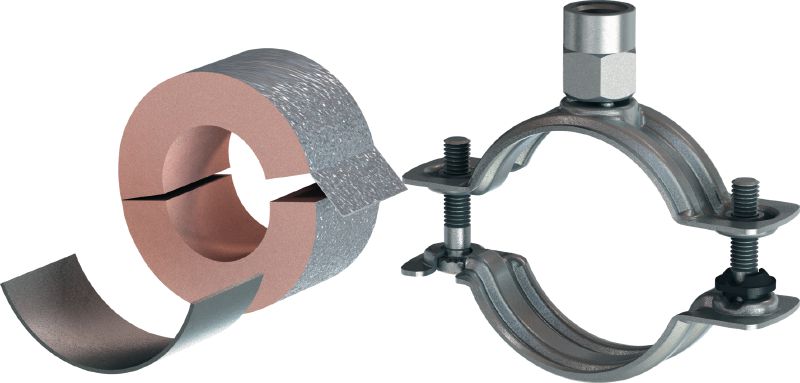

  • All-in-one parcel – pipe clamp and insulation core – simplifies handling on the jobsite and in the warehouse
  • Free of H-CFCs or CFCs
  • Easy initial installation of the pipe thanks to the two-screw pipe ring with pivot mechanism

Applications

  • Fastening pipes for refrigeration and air conditioning systems
  • Mounting refrigeration pipes in industrial and air conditioning applications
  • Fastening pipes for process water

For approval or certificate information, please see individual items.
