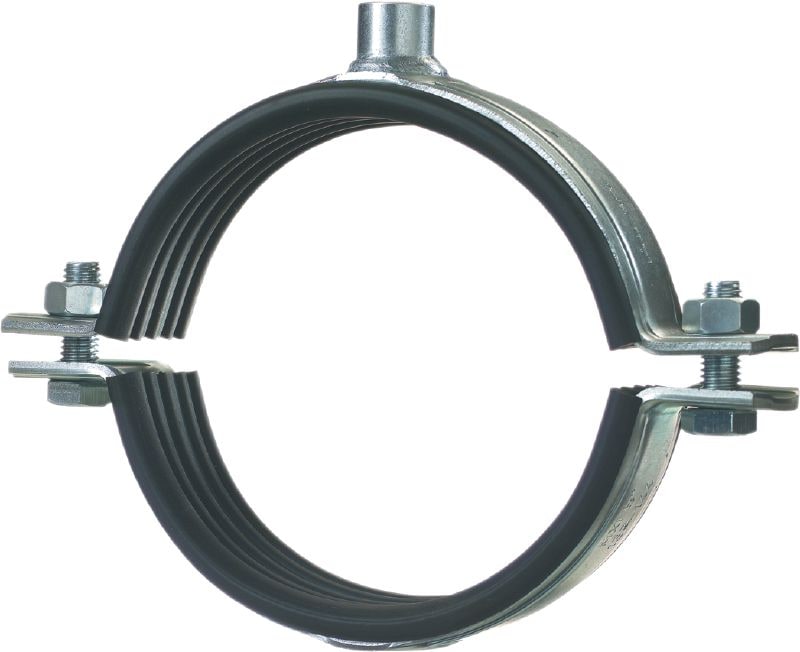

MP-MXI heavy-duty pipe clamp
Heavy-d. pipe ring MP-MXI 326 M16 #372243
Galvanised pipe clamp with sound insulation for extra heavy-duty applications
- Clamping range - D: 325 - 330 mm
- Thread connection - M: M16
- Maximum load - F: 11000 N
premium
Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.
Choose options
Clamping range - D
- 60 - 65 mm
- 73 - 78 mm
- 88 - 93 mm
- 108 - 116 mm
- 122 - 126 mm
- 132 - 138 mm
- 139 - 144 mm
- 159 - 166 mm
- 163 - 170 mm
- 177 - 182 mm
- 192 - 200 mm
- 210 - 218 mm
- 219 - 228 mm
- 244 - 253 mm
- 267 - 274 mm
- 275 - 282 mm
- 315 - 324 mm
- 325 - 330 mm
- 348 - 356 mm
- 364 - 372 mm
- 400 - 409 mm
- 454 - 462 mm
Thread connection - M
- M10, M12
- M16
Nominal pipe size (imperial)
- 2 in
- 2-1/2 in
- 3 in
- 4 in
- 5 in
- 6 in
Pack size
- 1 pc
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
OMR 213.720
OMR 53.430 / 1 each
Technical Data
Clamping range - D
325 - 330 mm
Thread connection - M
M16
Maximum load - F
11000 N
Approvals
Acustic insulaton DIN 4109 inspected, Fire resistance test IBMB 2101-255-18, Fire class B2
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M16
Tightening torque
20 Nm
Cross section thickness - s
5 mm
Cross section width - b
50 mm
Width - B
445 mm
Distance between holes - A
394 mm
Product class
Premium
Distance centre pipe to top - h
192 mm
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Non-slip, pre-fitted profiled rubber inlay

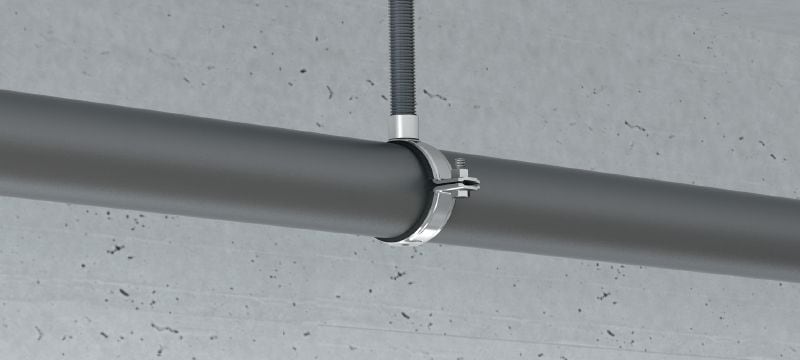

- Suitable for installing pipes under dynamic loading if used with vibration-damping components
Applications
- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting process and control queues
- Installation of industrial pipework
