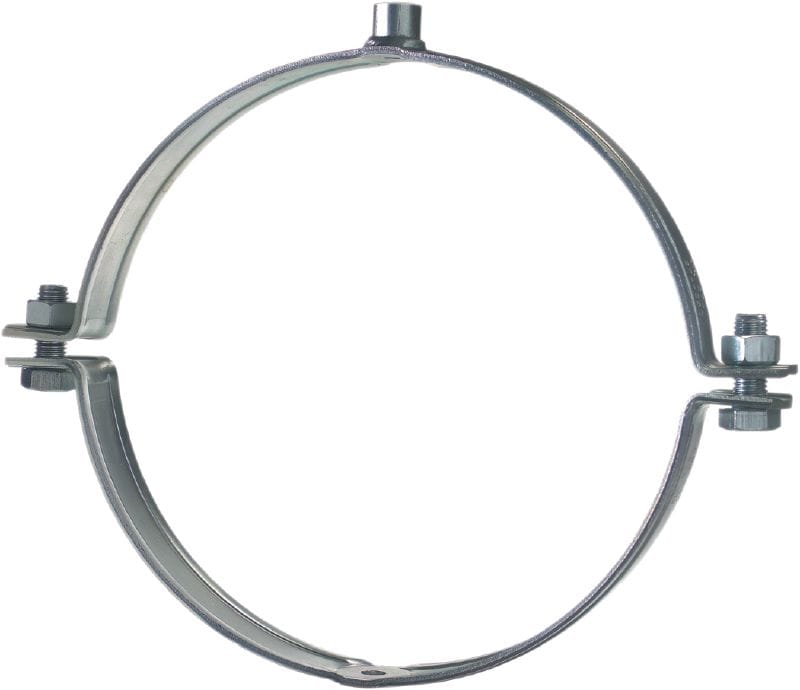

MP-MX heavy-duty pipe clamp
Heavy-d. pipe ring MP-MX 508 1" #372317
Galvanised pipe clamp without sound insulation for extra heavy-duty applications
- Clamping range - D: 500 - 508 mm
- Thread connection - M: 1 in
- Maximum load - F: 19000 N
standard
Choose options
Clamping range - D
- 500 - 508 mm
Thread connection - M
- 1 in
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
OMR 559.360
OMR 139.840 / 1 each
Technical Data
Clamping range - D
500 - 508 mm
Thread connection - M
1 in
Maximum load - F
19000 N
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M16
Tightening torque
20 Nm
Cross section thickness - s
6 mm
Cross section width - b
70 mm
Width - B
620 mm
Distance between holes - A
565 mm
Product class
Standard
Distance centre pipe to top - h
276 mm
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Suitable for installing pipes under dynamic loading if used with vibration-damping components

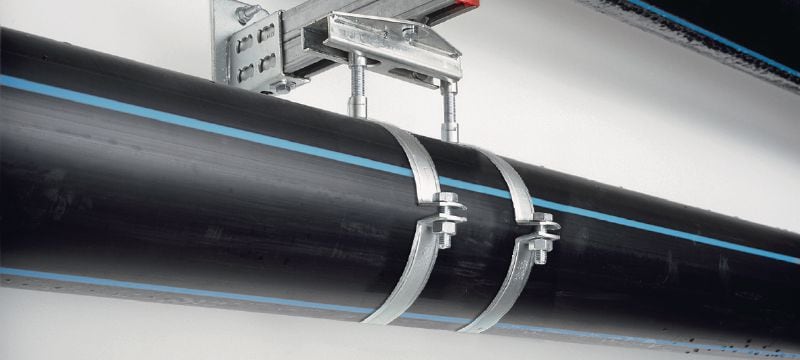

Applications
- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting process and control queues
- heavy-duty plumbing and heating applications
- Suitable for use in conjunction with vibration-reducing elements for pipework under dynamic loading
