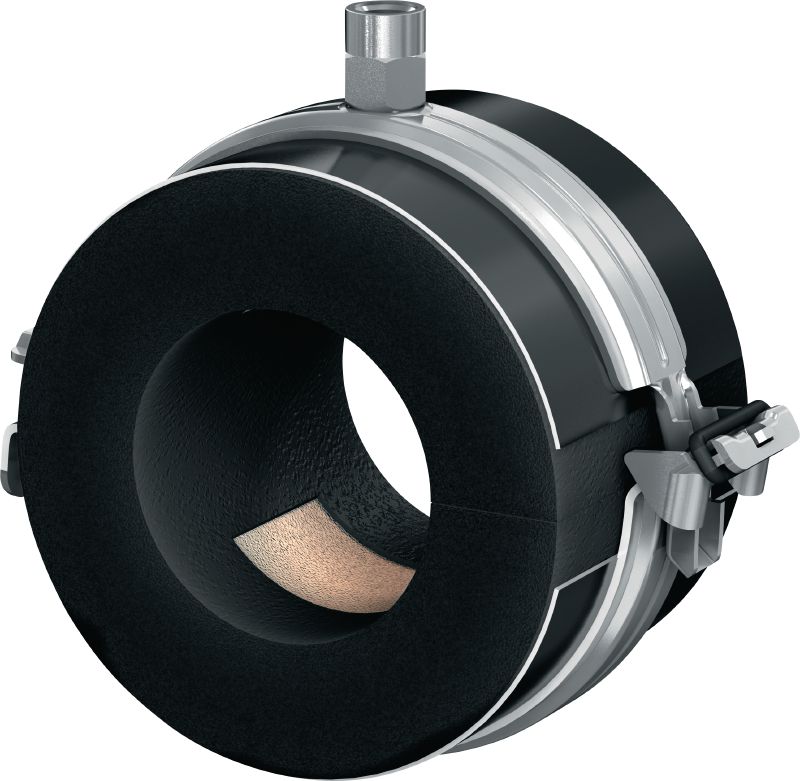

MIP-M Refrigeration pipe clamp (medium insulated)

Galvanised pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 20-25 mm

ultimate

Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.

Clamping range - D

Thread connection - M

Nominal pipe size (imperial)

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From OMR 38.321

Approvals

Fire class B2

Noise reduction

21 dB (A)

Temperature resistance

-40 - 105 °C

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Product class

Ultimate

Diffusion resistance

≥ 10000

Thermal conductivity (λ approx. value)

0.036 W/mK

Approx. density

145 kg/m³

Additional product information

Tightening torque clamping screw M5: 1 Nm, M6: 2 Nm, M8: 3 Nm, M16: 20 Nm

Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
Thermally decoupled system with integrated vapour (diffusion) barrier to help prevent thermal short circuits

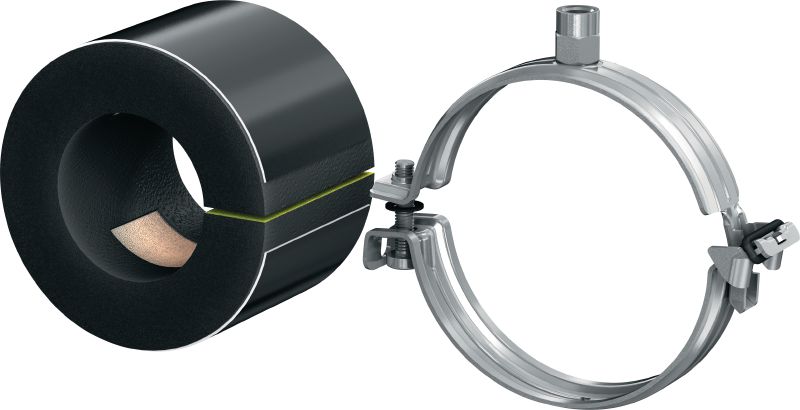

Assembly of the insulation core with a handle thanks to the self-adhesive closure
Three-stage quick closure with only one screw up to 115 mm; from 130 mm and larger two-screw closure

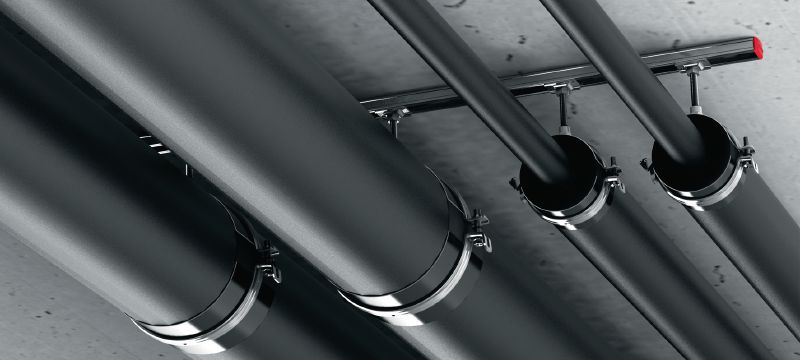

Mounting pipes up to 461 mm diameter in refrigeration and air conditioning applications
Applications where easy fitting of the insulating unit is required

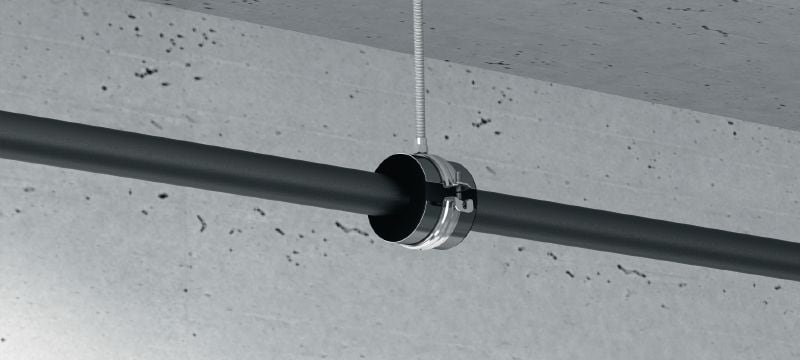

Mounting pipes in refrigeration and air conditioning applications up to 410 mm

For approval or certificate information, please see individual items.
