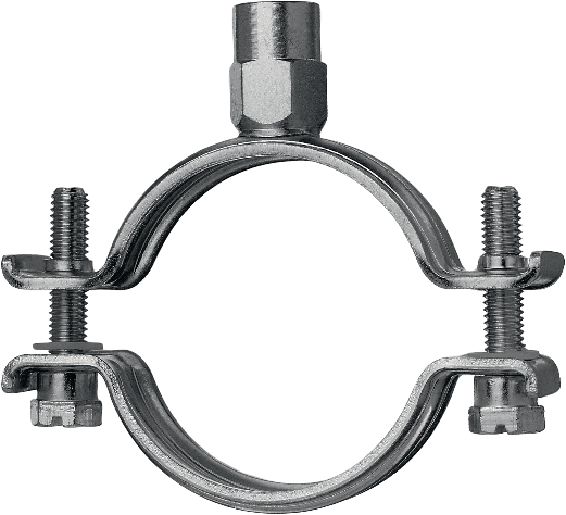

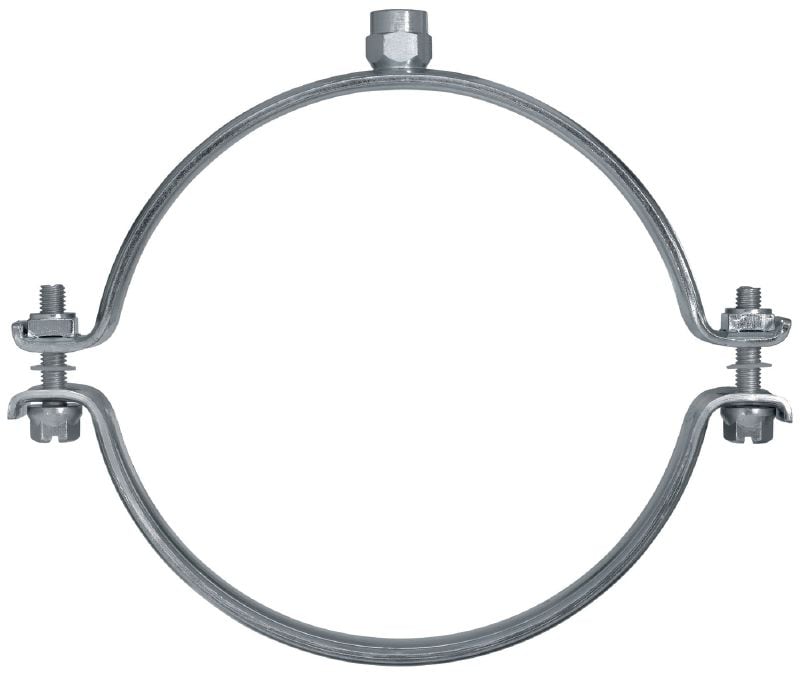

MP-MS Sprinkler pipe clamp
Galvanised sprinkler pipe clamp with VdS, FM and UL approvals for fire sprinkler applications
- Material composition: S235JRG - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Clamping range - D
- 20 - 25 mm
- 40 - 45 mm
Thread connection - M
- M8, M10
Nominal pipe size (imperial)
- 1/2 in
- 1-1/4 in
Pack size
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 3.827
Technical Data
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Swaged steel pipe clamp section for greater stiffness
- Clamping screws (slotted hexagon head, M8) pre-attached to pipe clamp to help prevent loss
- Sizes up to 2" equipped with M8/M10 flexible connection head
- Sizes larger than 68/72 mm with solid, welded-on nuts for better mounting of clamping screws
- Double thread M8/M10 for pipe rings up to 2"
Applications

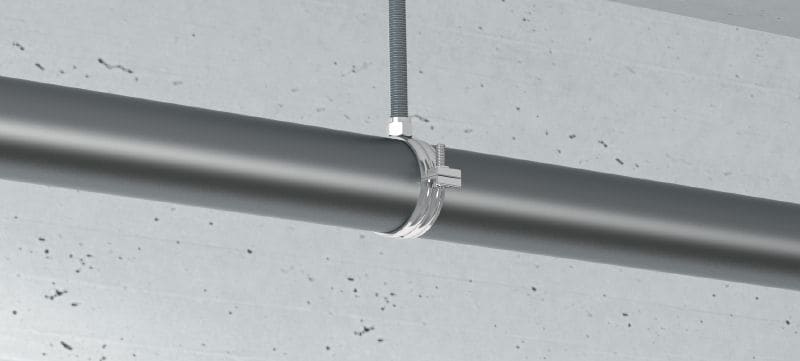

- single-point fastening for fire sprinkler applications
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
