MP-HI Quick-close light-duty pipe clamp

Resid. pipe ring MP-HI 75-84 M8/M10 assy #386413

Configurator
Technical Data
Documents
Features & Applications
Related Products
17214.tif
17213.tif
MP-HI129

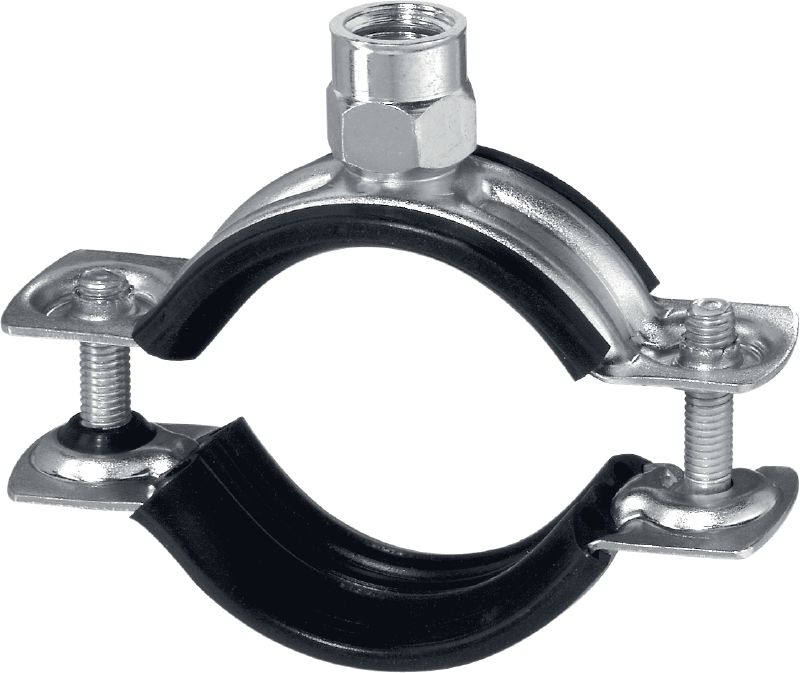

MP-HI Residential pipe rings

Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Clamping range - D: 75 - 84 mm
  • Nominal pipe size (imperial): 2-1/2 in
  • Thread connection - M: M8, M10
premium

Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.

Choose options

Clamping range - D
  • 75 - 84 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 2-1/2 in
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 2.031
OMR 2.030 / 1 each

Technical Data

Details
Technical illustrations
Clamping range - D
75 - 84 mm
Nominal pipe size (imperial)
2-1/2 in
Thread connection - M
M8, M10
Maximum load - F
1200 N
Approvals
Acustic insulaton DIN 4109 inspected, ETA, Fire class B2
Noise reduction
17 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
45° ±5° Shore A
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
1.8 mm
Cross section width - b
25 mm
Width - B
140 mm
Product class
Premium
Distance centre pipe to top - h
67 mm

Documents

Approval document
Documentation
Test Report
Sustainability Documentation
pdf ETA 21/0803 MP-HI & MP-H (28.01.2022), English, German, French [ 2.3 MB ]
pdf Load data MP-HI, English, German [ 70.3 KB ]
pdf Building material class B2 / Class E, English [ 116.5 KB ]

Features & Applications

Features

  • Two-screw pipe clamp with side swiveling mechanism
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Click closure for easier and faster pre-fixing
  • Adhesive-bonded acoustic insulation inlay – helps to prevent drop-out during installation
  • Welded M8/M10 double connection head for more flexibility

Applications

  • Light-duty pipe installations up to 6" (or 172mm)

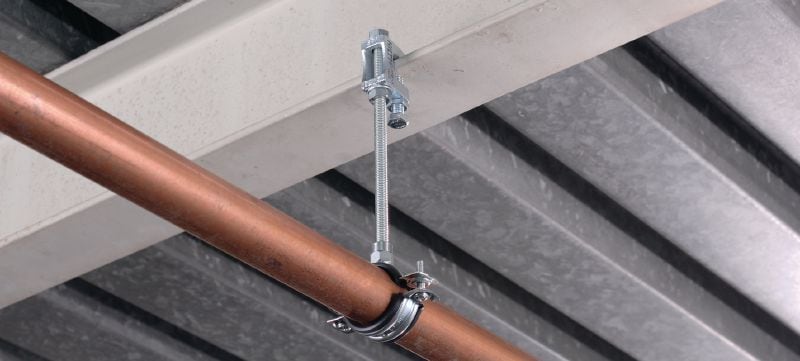

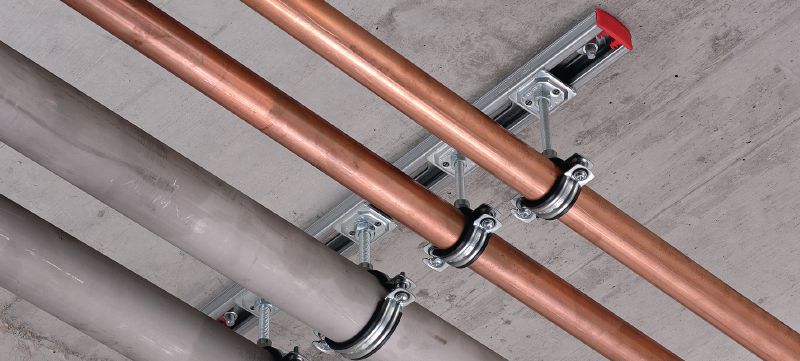

  • Fastening fresh water, waste water and heating pipes
  • Sanitary, heating and gas applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Fastening drinking water pipes and heating pipes in residential and industrial construction
