MIQ Box profile

Girder MIQ-90 6m #2119867

LCG002396_HDG_v1 (202970)
MIQ (75718)
IS_MIQ_0001.eps (75798)

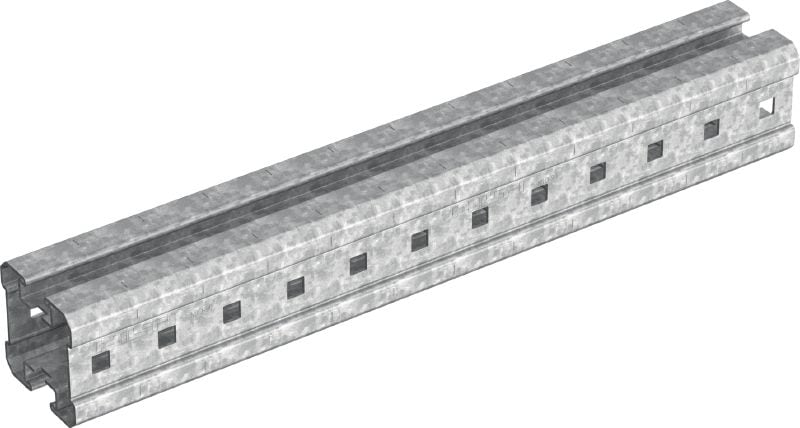

hot-dip galvanised (HDG) box profile for heavy-duty applications

  • Height: 90 mm
  • Material composition: S275JR - EN 10025
  • Surface finish: Outdoor Coated - HDG

Choose options

Height
  • 90 mm
Length
  • 6000 mm
Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

0.16666666666666666 Packs (Total pieces 1)

Discounted net
OMR 140.193
OMR 140.190
/
1 m

Technical Data

Height
90 mm
Material composition
S275JR - EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Material thickness
2.5 mm
Weight
56.24 kg

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Full compatibility with both MQ and MI channel systems
  • Continuous mounting slot allows connectors to be fitted at any point along the girder
  • Effortless pipe connections directly on the girder
  • Automatic tightening with SI-AT module for supported connectors

Applications

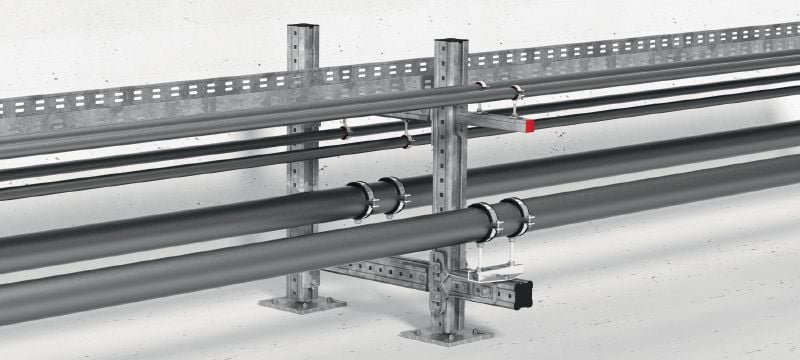

  • Modular system for supporting cable trays, pipes and various other installation applications
  • Provides an easy-to-instal, adjustable, flexible solution for industrial and heavy commercial applications, eliminating the need for welding
  • Assembly of goalposts, cantilevers, cantilever crosses or covering large spans
