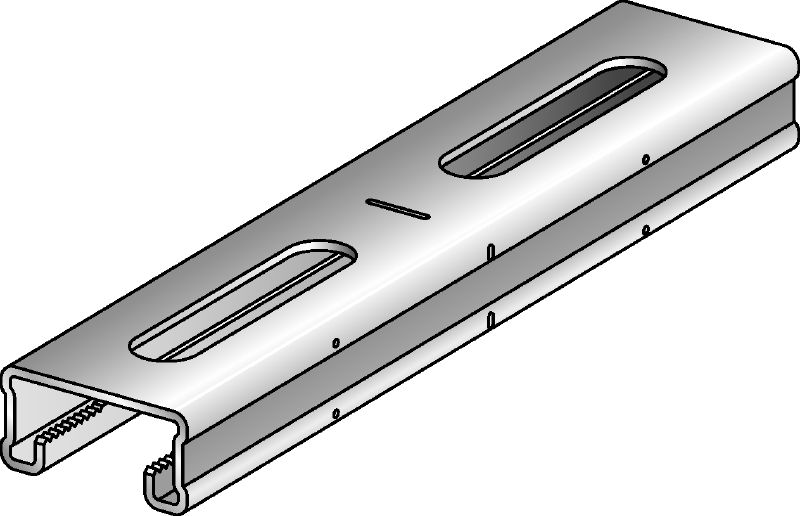

MQ-21 C-Channel profile

Install. channel MQ-21 6m #236647

Galvanised C-Channel profile for light-duty applications

  • Height: 20.6 mm
  • Material thickness: 2 mm
  • Material composition: S250GD - DIN EN 10346

Customers also searched for pipe supportscable tray supportsventilation duct supportsfastening supports or installation channel.

Choose options

Length
  • 6 m
Pack size
  • 6 m
Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 28.410

OMR 4.740 / 1 m

Technical Data

Height
20.6 mm
Material thickness
2 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
8628 g

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Long back slots – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Versatile, flexible and secure fastening with lateral and vertical adjustment

Applications

  • Recommended for installation in dry interiors
  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
