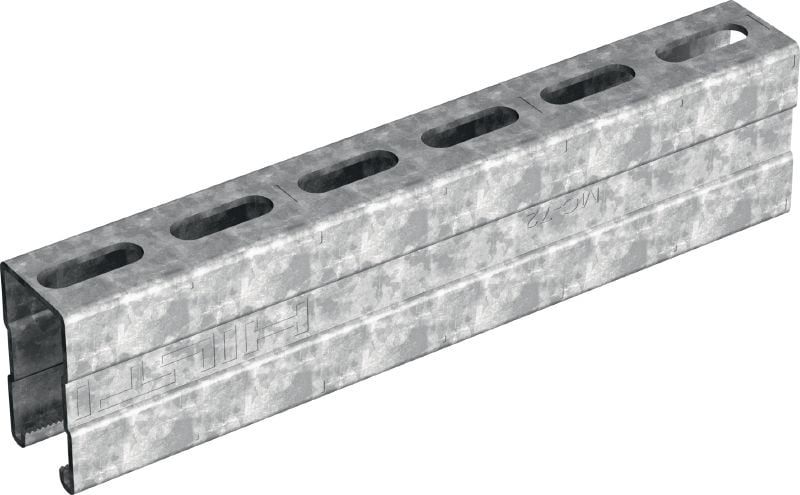

MC-72 OC-A
Hot-dip galvanised (HDG) installation channel for higher load requirements and outdoor use
- Height: 72 mm
- Material thickness: 2.75 mm
- Material composition: Structural steel with minimum yield strength of 235 N/mm2
Customers also searched for cable tray supports, floor supports, electrical supports, 3d channel system or installation channel.
Technical Data
Height
72 mm
Material thickness
2.75 mm
Material composition
Structural steel with minimum yield strength of 235 N/mm2
Surface finish
Outdoor Coated - HDG
Features & Applications
Features
- Easier adjustment due to serrated open face
- High load capacity
- Dimension marks to simplify cutting and installation
- Slotted back to simplify connection of additional elements
Applications
- Cable tray support structures
- Instrumentation support structures
- Integrated floor support structures
- Secondary steel support structures
For approval or certificate information, please see individual items.
