MC-3D-41

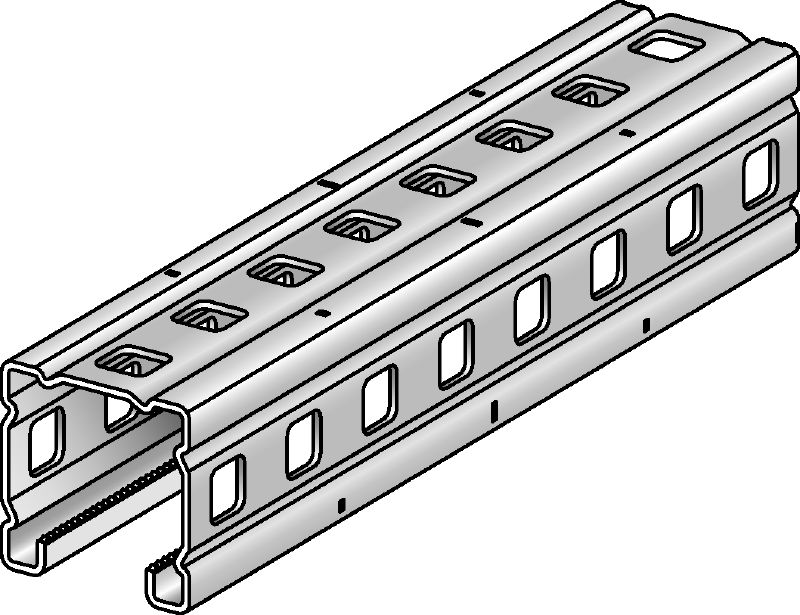

Install. channel MC-3D-41 6m #2063294

Galvanised installation channel for 2D and 3D indoor applications

  • Height: 41 mm
  • Material thickness: 1.6 mm
  • Material composition: Structural steel with minimum yield strength of 280 N/mm2

Customers also searched for cable tray supportsfloor supportselectrical supports3d channel system or installation channel.

Choose options

Length
  • 6 m
Pack size
  • 6 m
Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 32.562

OMR 5.430 / 1 m

Technical Data

Height
41 mm
Material thickness
1.6 mm
Material composition
Structural steel with minimum yield strength of 280 N/mm2
Surface finish
Sendzimir galvanized
Weight
10278 g

Features & Applications

Features

  • Can be connected on any channel face
  • High flexibility – supports multiple fastening types and directions
  • Easier adjustment due to serrated open face
  • Dimension marks to simplify cutting and installation

Applications

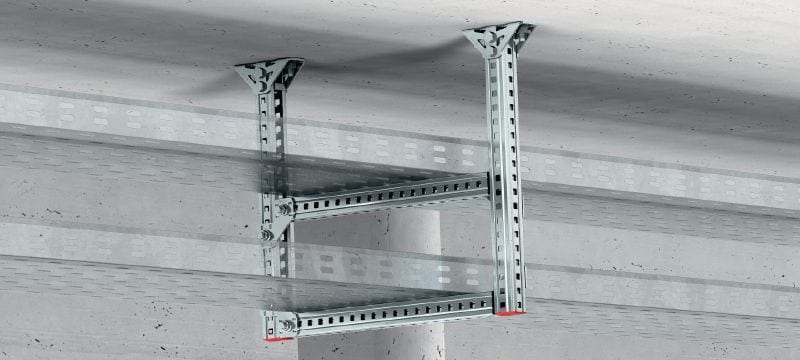

  • Cable tray support structures

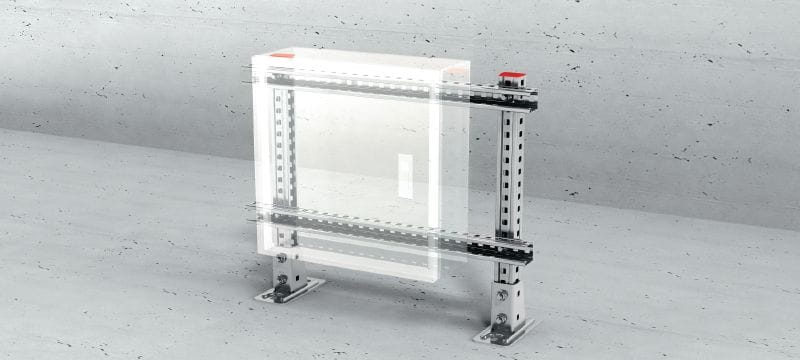

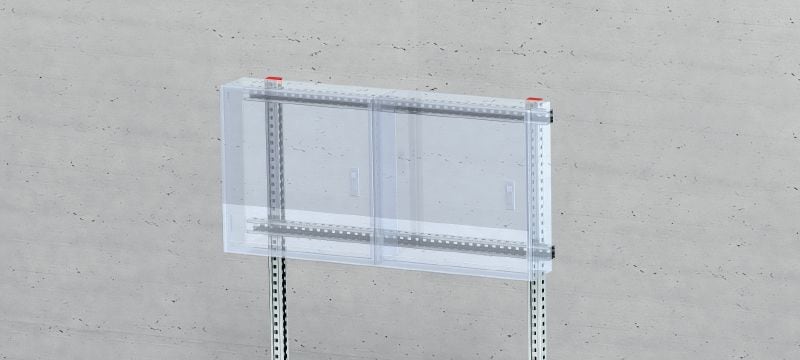

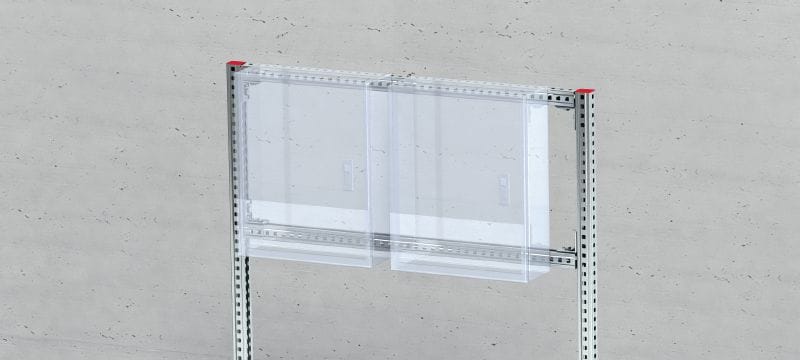

  • Instrumentation support structures
  • Integrated floor support structures
  • Secondary steel support structures
