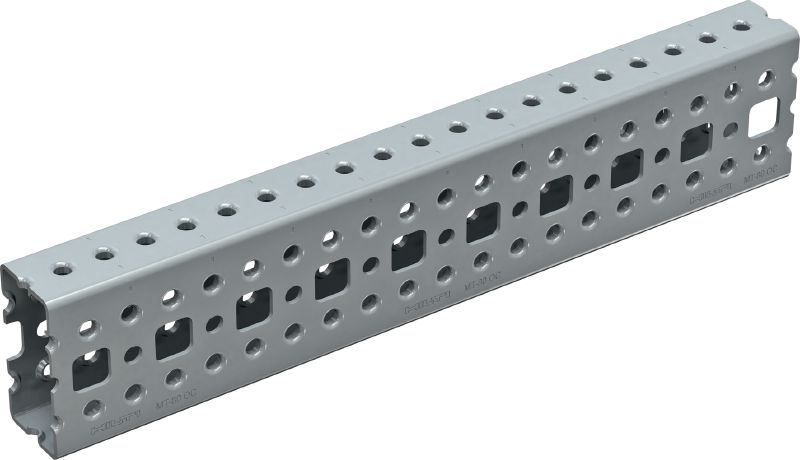

MT-80 OC Box profile

I.-Channel MT-80 OC product number: 2268367

heavy-duty box profile for use with MT-TFB components in outdoor environments

Choose options

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 381.660

OMR 63.610

1 m

Material composition

S350 or better steel

Surface finish

Zinc-Magnesium - for outdoor use

Material thickness

3 mm

Weight

36.35 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

pdf ETA-23-0105 Static Fire MT Channels, English [ 3.1 MB ]

pdf ETA-23-0104_Fire_Frame_MT_Trapeze_EN, English [ 4.8 MB ]

Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
Enables direct girder-to-girder fixation, without connectors for a highly efficient solution

Floor-mounted MEP support structures with heavy loads and extra-long spans
Ceiling-mounted MEP support structures with heavy loads and extra-long spans
Wall-mounted cantilever brackets for heavy-duty, industrial pipes
Modular 3D framing to support industrial pipes and other heavy-duty building services
Suitable for use in moderately corrosive environments
