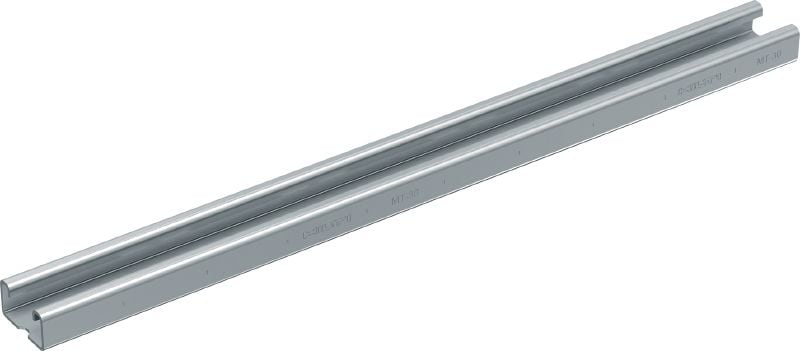

MT-30 C-Channel profile

I.-Channel MT-30 #2268498

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003271_v1 (217090)
04_IS_MT-30_0001 (218613)

medium-duty C-Channel profile for use with MT-FL/MT-TL components in indoor environments

  • Material composition: S280 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Material thickness: 2 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 17.280
OMR 2.880
/
1 m

Technical Data

Details
Technical illustrations
Material composition
S280 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Material thickness
2 mm
Weight
8.92 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Floor-mounted MEP support structures with lighter loads and limited spans, such as goal post-type strut framing
  • Ceiling-mounted MEP support structures with lighter loads and limited spans, such as suspended strut trapeze frames
  • Lightweight modular 3D framing to support pipes, ducts and cable trays
  • Suitable for use in dry, indoor environments
