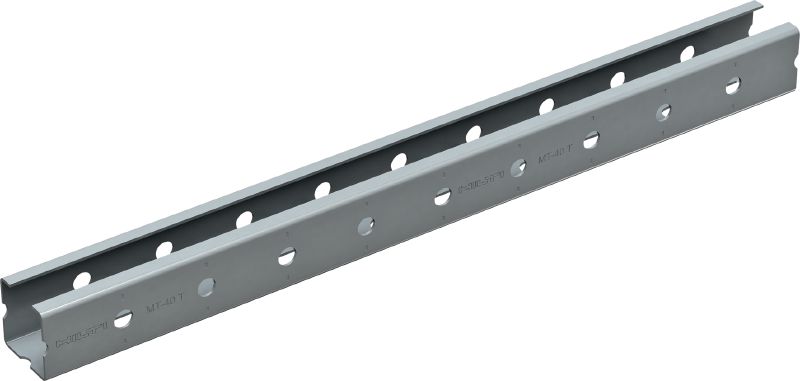

MT-40 T OC Basic profile

I.-Channel MT-40 T OC #2268504

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003274_v3 (217088)

Light-duty basic profile for use in outdoor environments

  • Material composition: S280 or better steel
  • Surface finish: Zinc-Magnesium - for outdoor use
  • Material thickness: 1.75 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 50.934
OMR 8.490
/
1 m

Technical Data

Material composition
S280 or better steel
Surface finish
Zinc-Magnesium - for outdoor use
Material thickness
1.75 mm
Weight
10.14 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Economical solution for threaded rod trapeze frames
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects

Applications

  • Strut trapeze to support pipes, ducts and cable trays
  • Suitable for use in moderately corrosive environments
