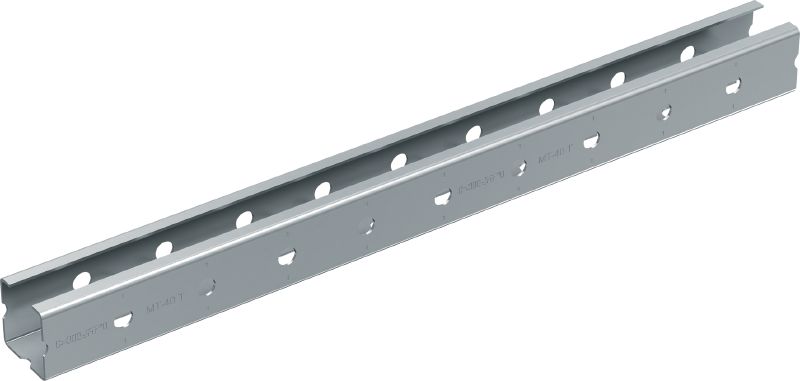

MT-40 T Basic profile
I.-Channel MT-40 T #2268502
Light-duty basic profile for use in indoor environments
- Material composition: S280 or better steel
- Surface finish: Indoor Coated - Pre-galvanised
- Material thickness: 1.75 mm
Choose options
Pack size
- 6 m
Quantity
Packs
Total m
6
Discounted net
OMR 33.996
OMR 5.670 / 1 m
Technical Data
Material composition
S280 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Material thickness
1.75 mm
Weight
10.14 kg
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
- Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
- Economical solution for threaded rod trapeze frames
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
- Engineering and calculation service available – your local Hilti Engineers can provide advice and calculation services on more complex projects
Applications
- Strut trapeze to support pipes, ducts and cable trays
- Suitable for use in dry, indoor environments
