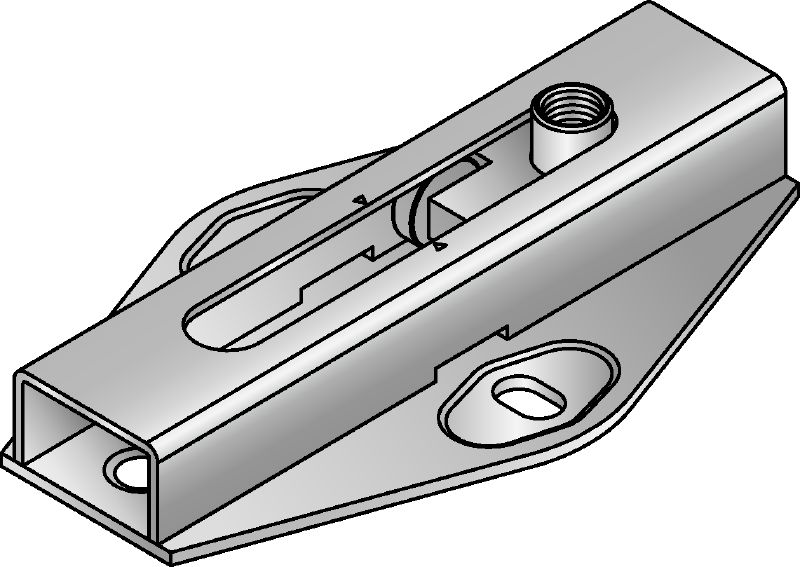

MRG 4,0 roll connector
Roll connector MRG 4,0 M12/16 #243551
Galvanised roll connector for medium/heavy-duty heating and refrigeration applications
- Thread connection - M: M12, M16
- Height - H: 39 mm
- Maximum load - F: 4 kN
Choose options
Thread connection - M
- M12, M16
Height - H
- 39 mm
Maximum load - F
- 4 kN
Pack size
- 5 pc
Quantity
Packs
Total Pieces
5
Discounted net
OMR 31.153
OMR 31.150 / 1 each
Technical Data
Thread connection - M
M12, M16
Height - H
39 mm
Maximum load - F
4 kN
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Max. displacement
120 mm
Coefficient of sliding friction
0.08
Weight
1.37 kg
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Smooth rolling movement on coated runner in both directions in axial pipe direction
Applications
- Mounting pipes subject to thermal elongation and contraction
- single-point fastening of pipes or in combination with modular support systems
- Recommended for use in dry, interior environments
