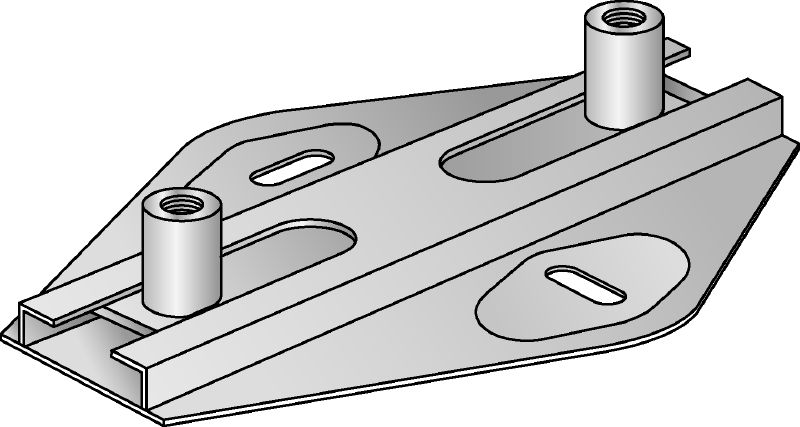

MSG 1,75 Double slide connector
Slide connector MSG 1,75 M8/10D #248209
Galvanised double slide connector for light-duty heating and refrigeration applications
- Thread connection - M: M8, M10
- Height - H: 27 mm
- Maximum load - F: 1.75 kN
Choose options
Thread connection - M
- M8, M10
Height - H
- 27 mm
Maximum load - F
- 1.75 kN
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
OMR 15.767
OMR 15.770 / 1 each
Technical Data
Thread connection - M
M8, M10
Height - H
27 mm
Maximum load - F
1.75 kN
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Concrete, Steel, Wood
Max. displacement
94 mm
Coefficient of sliding friction
0.18
Weight
0.56 kg
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Smooth sliding movement on integrated plastic guide
- Slide cannot pull out
Applications
- Mounting pipes subject to thermal elongation and contraction
- single-point fastening of pipes or in combination with modular support systems
- Recommended for use in dry, interior environments
