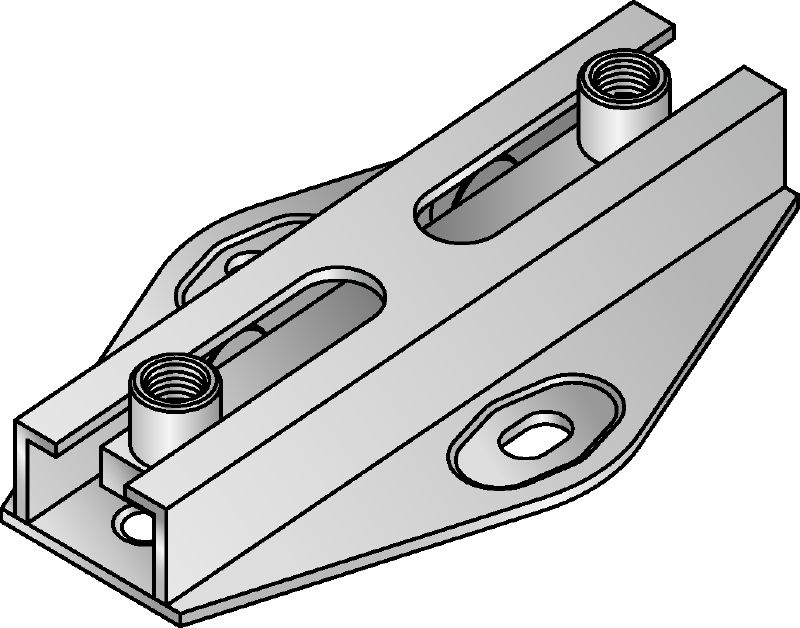

MRG-D6-F double roll connector
Double roll connector MRG-D6-F #304214
hot-dip galvanised (HDG) double roll connector for heavy-duty heating and refrigeration applications
- Thread connection - M: M12, M16
- Height - H: 44 mm
- Maximum load - F: 6 kN
Choose options
Thread connection - M
- M12, M16
Height - H
- 44 mm
Maximum load - F
- 6 kN
Pack size
- 5 pc
Quantity
Packs
Total Pieces
5
Discounted net
OMR 110.728
OMR 110.730 / 1 each
Technical Data
Thread connection - M
M12, M16
Height - H
44 mm
Maximum load - F
6 kN
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Max. displacement
116 mm
Coefficient of sliding friction
0.15
Weight
1.8 kg
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Smooth rolling movement on coated runner in both directions in axial pipe direction
- High temperature resistance up to 300°C – no plastic parts
Applications
- Mounting pipes subject to thermal elongation and contraction
- single-point fastening of pipes or in combination with modular support systems
- Recommended for use in moderately corrosive outdoor and indoor environments
