MM-B-36
MM-B

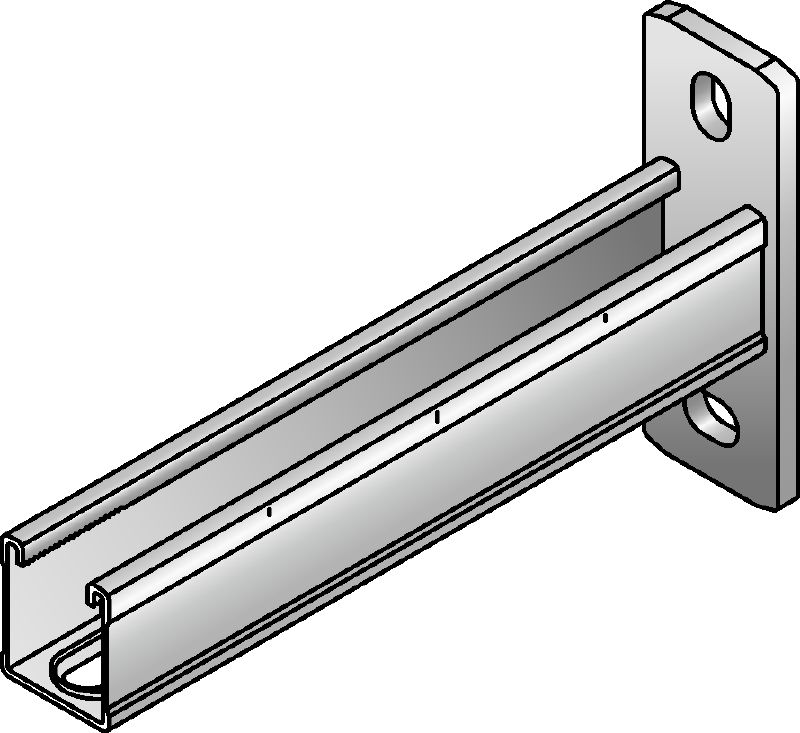

MM-B-36

Bracket

  • Material thickness: Channel: 1.75 mm, Baseplate: 6 mm
  • Material composition: Material channel: S235 JR - DIN EN 10025-2, Material plate: S355 MC - DIN EN 10149-2
  • Surface finish: Galvanized

Customers also searched for brackets, connecting channels to concrete floors, connecting channels to concrete ceilings, metal connectors or installation channel.

Choose options

Profile
  • MM-C-36
Length - L
  • 300 mm
  • 450 mm
  • 600 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 9.044

Technical Data

Details
Technical illustrations
Material thickness
Channel: 1.75 mm, Baseplate: 6 mm
Material composition
Material channel: S235 JR - DIN EN 10025-2, Material plate: S355 MC - DIN EN 10149-2
Surface finish
Galvanized
Profile
MM-C-36

Features & Applications

Features

  • C-profile with serrated edge
  • Elongated holes with flanged edges for greater versatility and strength
  • Optimised design to match anchor loads
  • Grid dimensions serve as an installation aid

Applications

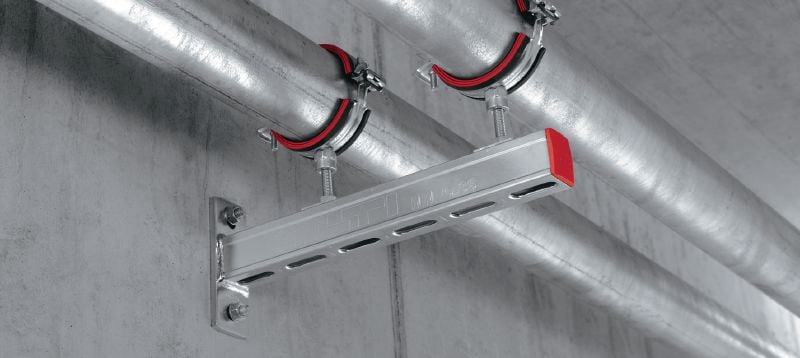

  • Fastening light- to medium-duty pipe runs
  • Fastening ventilation ducts and cable trays
  • Recommended for use in dry interiors

For approval or certificate information, please see individual items.
