MQK-41/3 bracket

Bracket MQK-41/3/600 #370597

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQK_41_3_o.eps (75422)

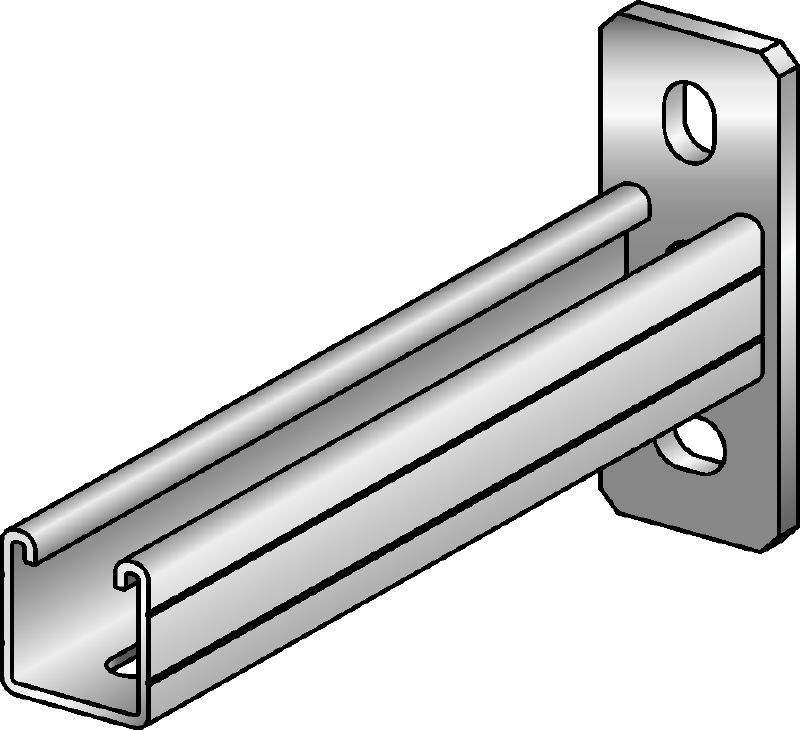

Galvanised C-Channel bracket for medium-duty applications

  • Approvals: ETA
  • Material thickness: Channel: 3 mm, Baseplate: 8 mm
  • Material composition: S235JR - DIN EN 10025

Choose options

Profile
  • MQ-41-3
Length - L
  • 600 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 33.972
OMR 33.970
/
1 each

Technical Data

Approvals
ETA
Material thickness
Channel: 3 mm, Baseplate: 8 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Profile
MQ-41-3
Weight
2060 g

Documents

Approval document
Documentation
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Grid dimensions serve as an installation aid
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Recommended for installation in dry interiors
  • Installing cable trays, air ducts and pipe supports
