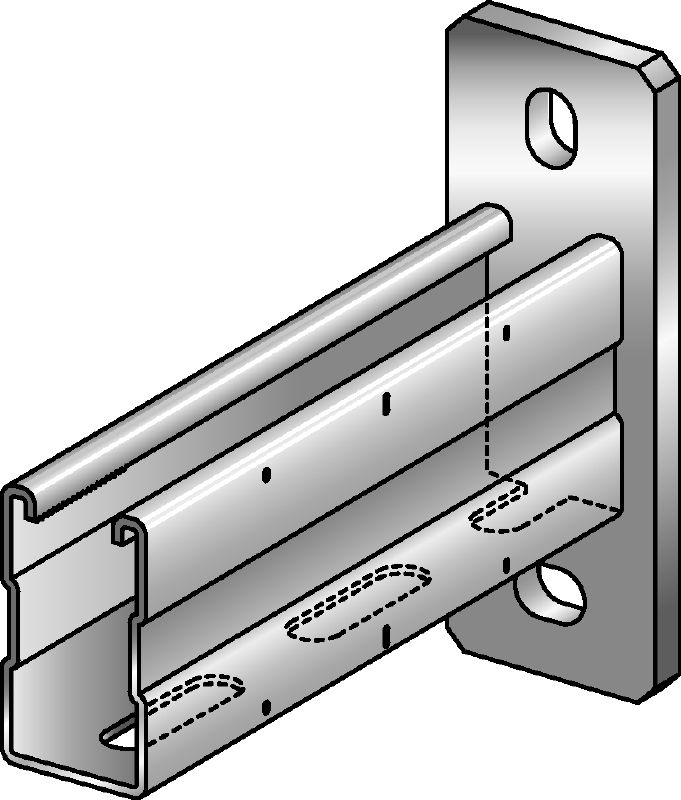

MQK-72 bracket
Bracket MQK-72/600 #369616
Galvanised C-Channel bracket for medium-duty applications
- Material thickness: Channel: 2.75 mm, Baseplate: 10 mm
- Material composition: S235JR - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
Choose options
Profile
- MQ-72
Length - L
- 600 mm
Pack size
- 6 pc
Quantity
Packs
Total Pieces
6
Discounted net
OMR 52.022
OMR 52.020 / 1 each
Technical Data
Material thickness
Channel: 2.75 mm, Baseplate: 10 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Profile
MQ-72
Weight
3160 g
Documents
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Engineered for higher shear load capacity and easier assembly
- Pre-marked dimensions – for quicker installation, assembly and measurement
- Different lengths
- Square base plate for better connection to the supporting material and increased rigidity
Applications
- Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
- Recommended for use in dry, interior environments
- Installing cable trays, air ducts and pipe supports
