MQK-41/4 bracket

Configurator
Technical Data
Features & Applications
Related Products
MQK-41/4
14700.eps

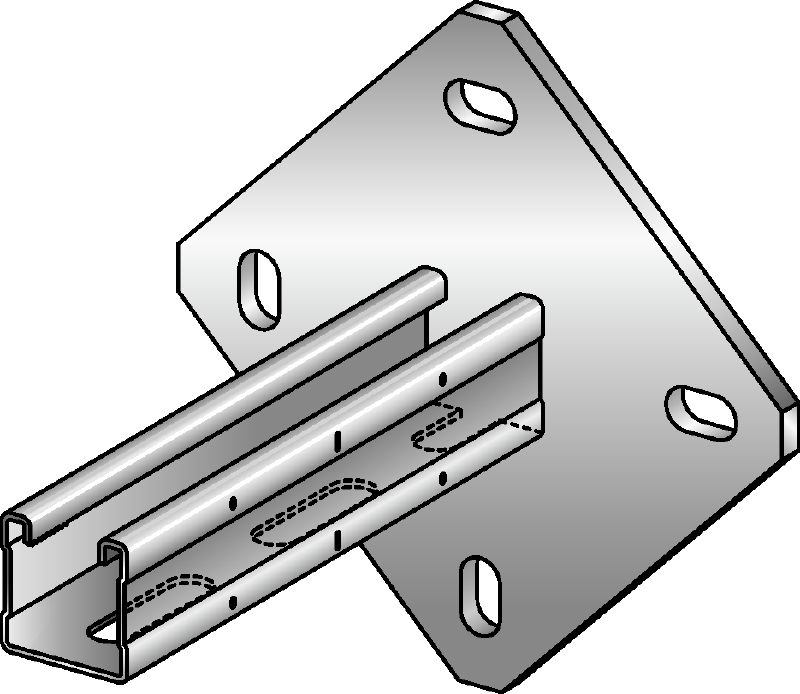

Galvanised C-Channel bracket with 4-hole baseplate for medium-duty applications

  • Material thickness: Channel: 2 mm, Baseplate: 8 mm
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised

Choose options

Profile
  • MQ-41
Length - L
  • 600 mm
  • 1000 mm
Pack size
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 43.093

Technical Data

Details
Technical illustrations
Material thickness
Channel: 2 mm, Baseplate: 8 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Profile
MQ-41

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Different lengths
  • Square base plate for better connection to the supporting material and increased rigidity

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Recommended for installation in dry interiors
  • Installing cable trays, air ducts and pipe supports

For approval or certificate information, please see individual items.
