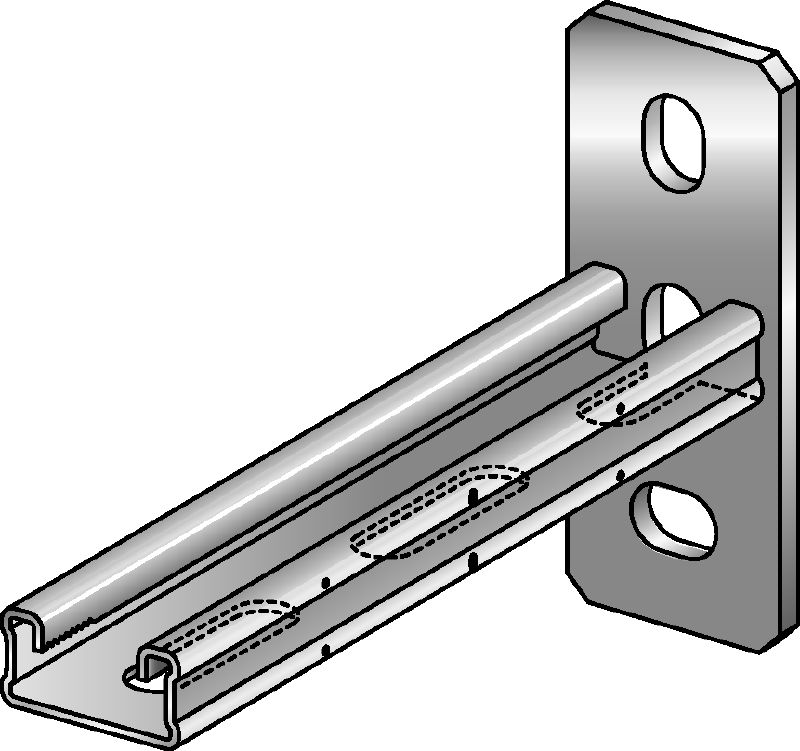

MQK-21-F bracket
Bracket MQK-21/450-F #304114
hot-dip galvanised (HDG) C-Channel bracket for medium-duty applications
- Material thickness: Channel: 2 mm, Baseplate: 6 mm
- Material composition: S235JR - DIN EN 10025
- Surface finish: Outdoor Coated - HDG
Choose options
Profile
- MQ-21-F
Length - L
- 450 mm
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
OMR 18.572
OMR 18.570 / 1 each
Technical Data
Material thickness
Channel: 2 mm, Baseplate: 6 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Profile
MQ-21-F
Weight
984 g
Documents
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Engineered for higher shear load capacity and easier assembly
- Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
- Pre-marked dimensions – for quicker installation, assembly and measurement
- Single channel, slotted
Applications
- Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
- Installations in ventilated façades, damp interiors and outdoor areas with little or no exposure to the weather
- Installing cable trays, air ducts and pipe supports
- Recommended for use in moderately corrosive outdoor and indoor environments
