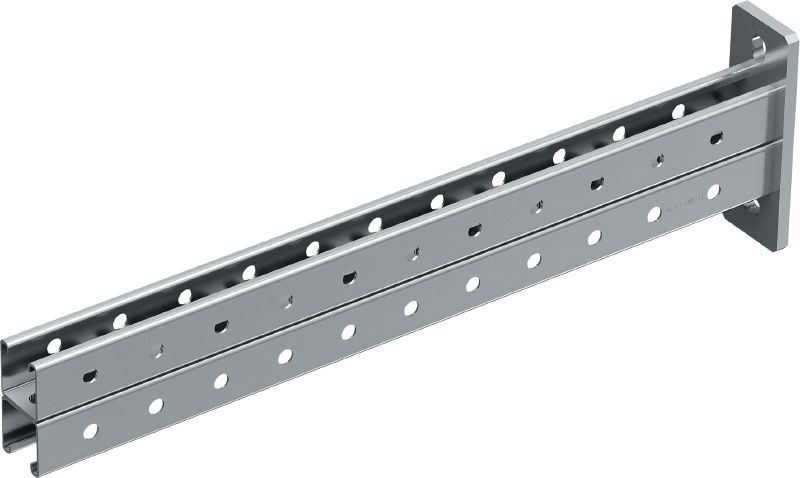

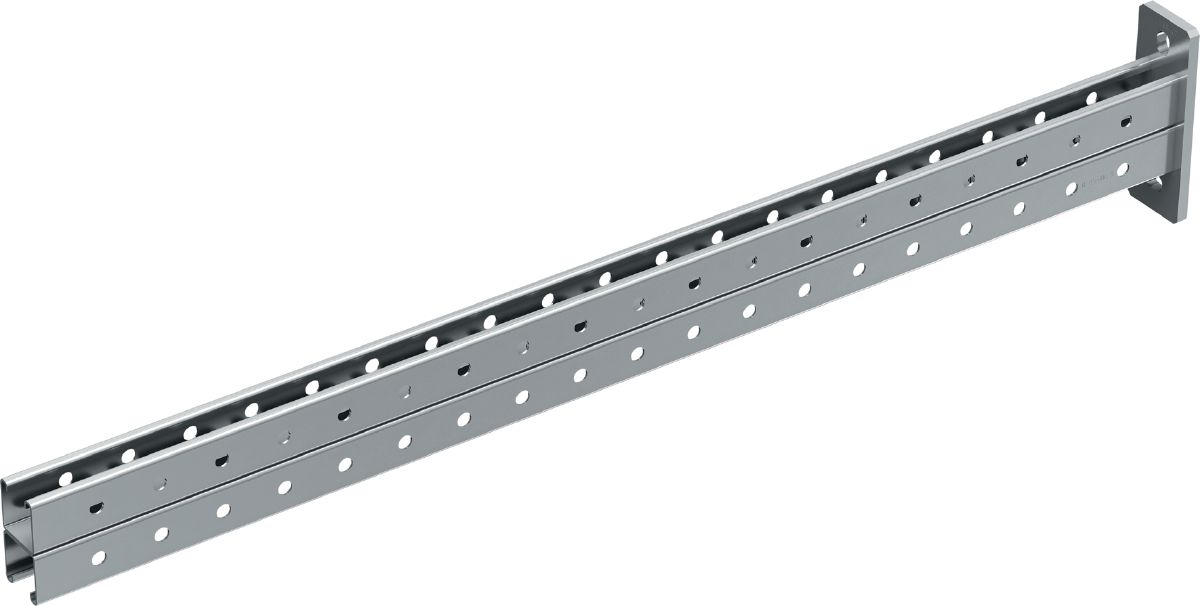

MT-BR-40D bracket

Bracket MT-BR-40D 1000 #2271450

medium-duty C-Channel double-bracket for indoor applications

Length - L

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

OMR 61.806

OMR 61.810 / 1 each

Material composition

Q235 or better steel

Surface finish

Electrogalvanized - for dry indoor use only

Material thickness

10 mm

Weight

4.83 kg

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Length - L

1000 mm

Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
Easy to instal – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
Adjustable – two slotted holes simplify leveling and fine adjustment
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

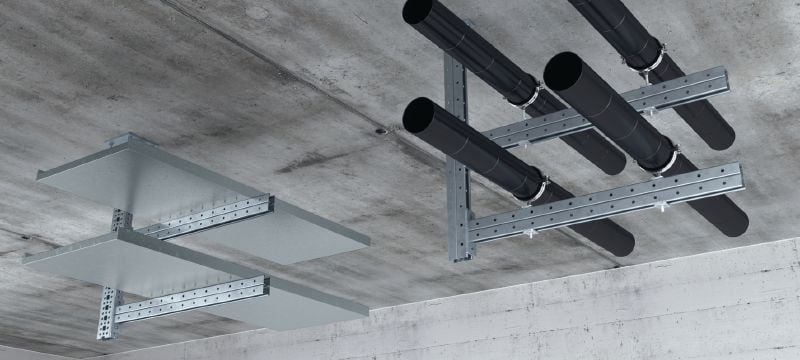

Supporting pipe rings, ventilation ducts, cable trays and other MEP support hardware
Mounting medium-duty MEP installations on concrete
Suitable for use in dry, indoor environments
