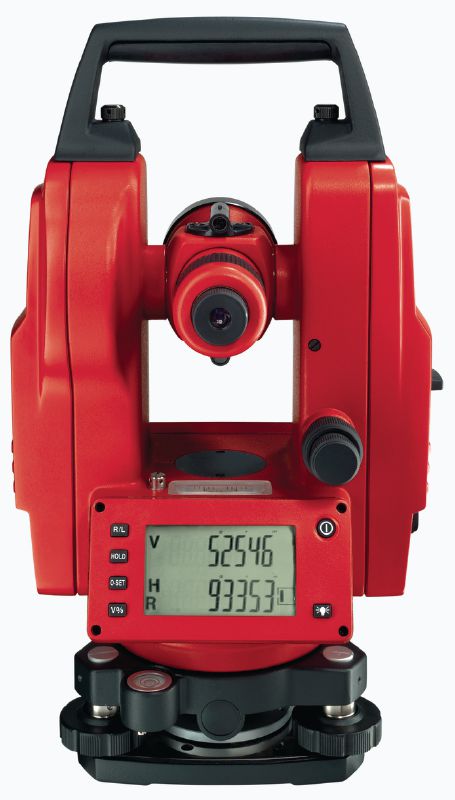

POT 10 Theodolite
Theodolite for levelling and aligning structural components and slopes with 30x magnification
- Magnification: 30 x
- Compensator type: 1 Axis liquid
- IP protection class: IP 55 (EN 60529)
Customers also searched for aligning structural components, aligning formwork, slopes and angles, external construction aligning or construction measuring tools.
Technical Data
Magnification
30 x
Compensator type
1 Axis liquid
IP protection class
IP 55 (EN 60529)
Operating temperature range
-20 - 50 °C
Weight
4.6 kg
Angle measurement accuracy (DIN 18723)
5 ″
Maximum operating time
80 h
Battery type
Li-ion 3.8 V / 5200 mAh
Charging time
4 h
Features & Applications
Features
- Laser plummet – a faster, easier way to position the theodolite over a point
- Fine drive with locking system
- Easy operation – electronic theodolite with large, easy-to-read display and intuitive controls
- High-quality optics with 30x magnification
- High-contrast display with large digits for best visibility even in bright, sunny conditions
Applications
- Checking and aligning structural components and formwork
- Setting out slopes and angles
- Transferring control lines to batter boards
- Transferring building control lines vertically
- Transferring batter board axes to the working area
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
