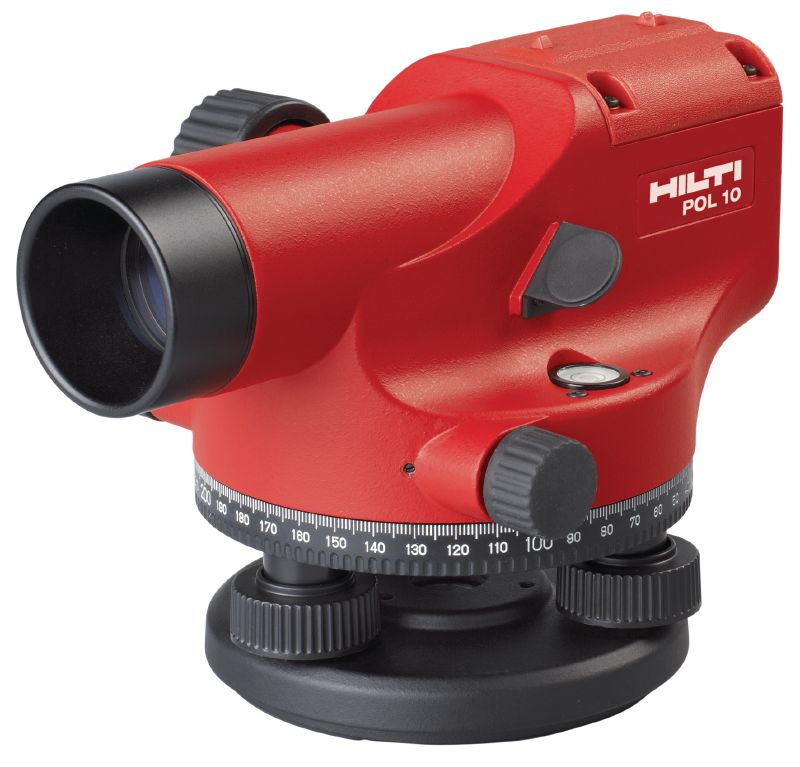

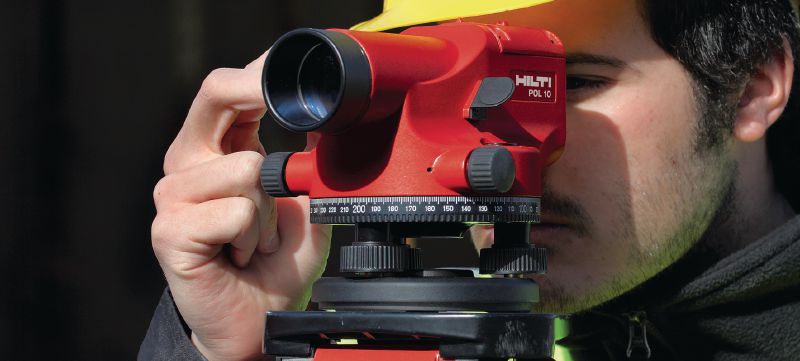

Optical level for everyday levelling tasks with 20x magnification

  • Magnification: 20 x
  • Compensator type: Air-damping
  • IP protection class: IP 55 (EN 60529)

Customers also searched for measuring heightsmeasuring angles and distanceconstruction levelingroad leveling or construction measuring tools.

Technical Data

Magnification
20 x
Compensator type
Air-damping
IP protection class
IP 55 (EN 60529)
Operating temperature range
-20 - 50 °C
Standard deviation (1 km double levelling)
3 mm
Weight
1.8 kg

Features & Applications

Features

  • High-quality optics for easy staff readings
  • High-quality mechanical parts – engineered for long-lasting, reliable and comfortable operation
  • Automatic compensator for accurate levelling
  • Ready-to-use set – with plumb bob and adjusting pin, packed in a robust carrying case
  • Convenient aiming device for rough alignment with the target

Applications

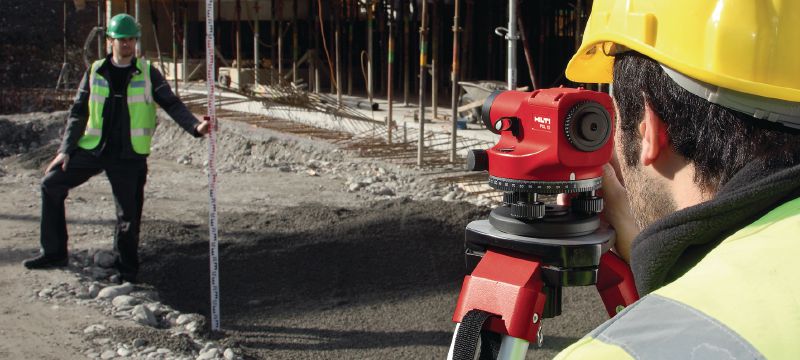

  • Measuring, checking and transferring heights
  • Checking concrete pouring heights and levels
  • Checking and adjusting formwork
  • Estimating angles and distances
  • Daily levelling tasks

For approval or certificate information, please see individual items.
