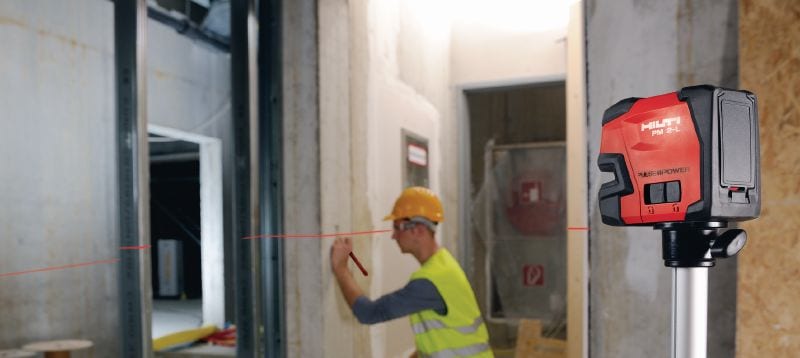

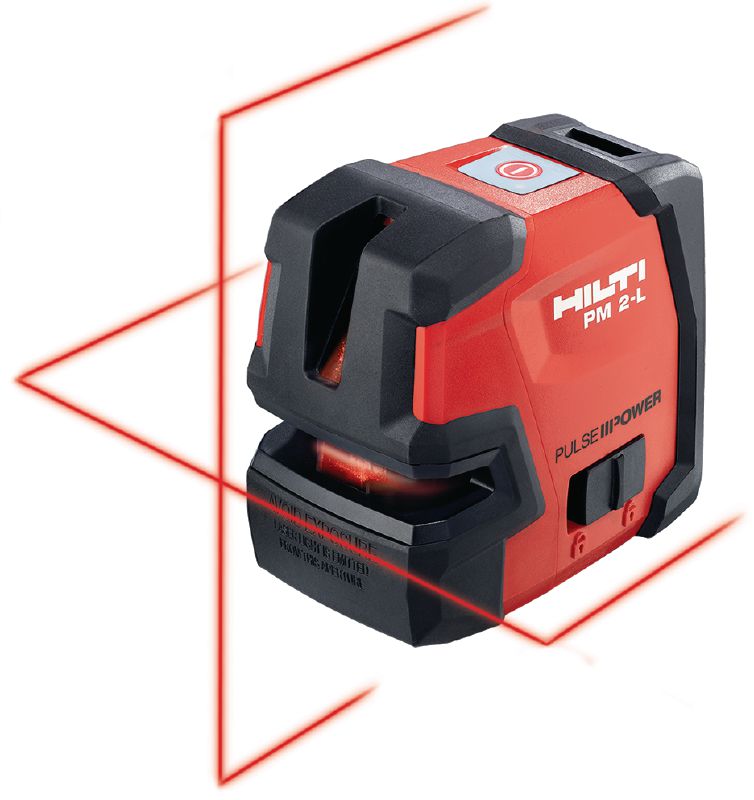

Line laser with 2 lines for levelling, aligning and squaring with red beam

  • Accuracy: ±3 mm at 10 m
  • Max. operating distance (diameter): 20 m (Lines), 60 m (Lines, with receiver)
  • Maximum operating time: 14 h

Technical Data

Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
20 m (Lines), 60 m (Lines, with receiver) 1
Maximum operating time
14 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
±4 °
Self-levelling time
3 s
Horizontal fan angle
180 °
Vertical fan angle
135 °
IP protection class
IP 54 (EN 60529)
Laser type
Line
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Features & Applications

Features

  • Compact size allows high-speed layout
  • Rubber-coated housing and pendulum lock for higher robustness
  • Out-of-level and low-battery alerts – help to prevent mistakes and unexpected downtime
  • Laser class 2 – no special precautionary measures needed

Applications

  • Transferring reference heights
  • Levelling suspended ceilings
  • Levelling electric sockets, cable trays, radiators and pipe installations
  • Levelling and aligning doors and windows
  • Aligning pipes vertically

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services
Lifetime_2_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
