PS 300 Ferroscan system

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L113042 (195253)
L134165 cropped (196264)
L134284 cropped (196270)
L134185 cropped (196265)
L134187 cropped (196266)
L134308 cropped (196272)
L134372 cropped (196451)

Concrete detector for rebar localisation, depth measurement and size estimation in structural analysis

  • Max. detection depth for object localization: 200 mm
  • Localisation accuracy: 1% +/-3mm mm
  • Minimum distance between two neighbouring objects: 30 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 8,191.070

Technical Data

Max. detection depth for object localization
200 mm 1
Localisation accuracy
1% +/-3mm mm 2
Minimum distance between two neighbouring objects
30 mm
Data memory (scanner)
200 scans
Working temperature range
-10 - 50 °C
Weight with batteries
2 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf White paper post installed rebar in Tunnelling, English [ 1.6 MB ]

Features & Applications

Features

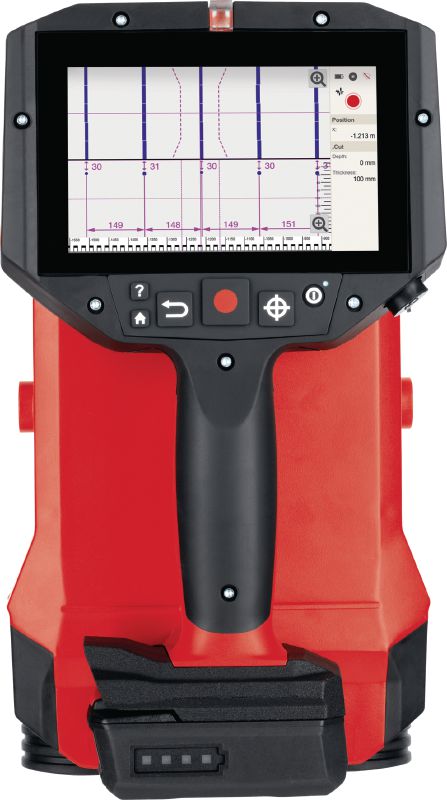

  • Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
  • Smart algorithm helps accurate depth measurements for rebar
  • Wide sensor area enables quick and easy scan over large areas
  • Record scan data for documentation and structural analysis

Applications

  • Verification and analysis for 1st layer rebar

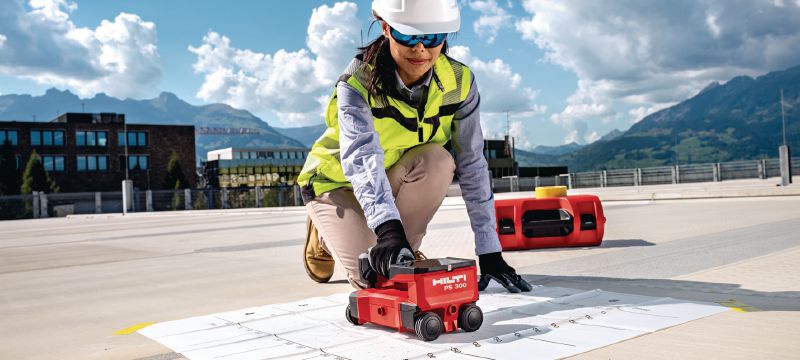

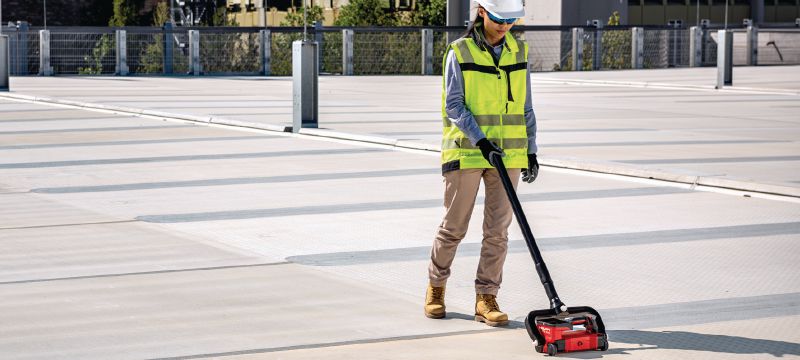

  • Checking concrete cover over large areas for structural repair work
  • Building acceptance inspections and quality control

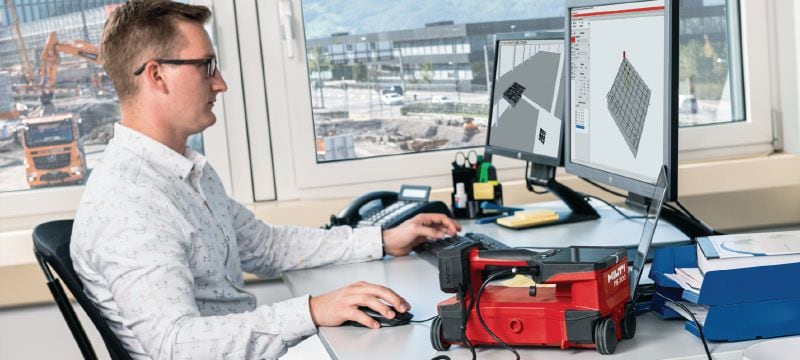

  • Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas

For approval or certificate information, please see individual items.
